Sepco C47Z Die Cast Zinc Straight Cable Connector 3/8-Inch

Product Description

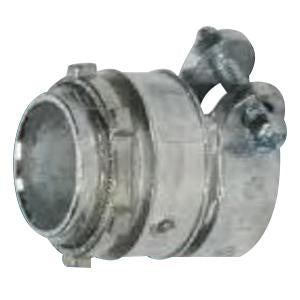

Sepco C47Z is a die cast zinc straight cable connector designed for trade size 3/8 inches. It connects steel or aluminum flexible metal conduit and armored cable to enclosures. The connector features a squeeze connection and measures zero point nine eight two inches in length by zero point five three to zero point six two inches in width. The product is UL listed and CSA certified.

• Installed with die-cast locknut and tri-combo screws
• Single cable opening
• Constructed from die cast zinc

Product Highlights

This connector is ideal for electrical installations requiring reliable connections for flexible conduit systems.

Product Information

Standard Information

• Brand: Sepco
• Manufacturer: Sepco

Technical Specifications

• MPN: C47Z
• Trade Size: 3/8 Inch
• Fitting Type: Connector
• Material: Die Cast Zinc
• Dimensions: 0.982 Inch Length x 0.53 - 0.62 Inch Width
• Connection Type: Squeeze
• Standards: UL E155411 Listed, CSA LR57925 Certified
• For Use With: Armored Cable and Flexible Metallic Conduit
