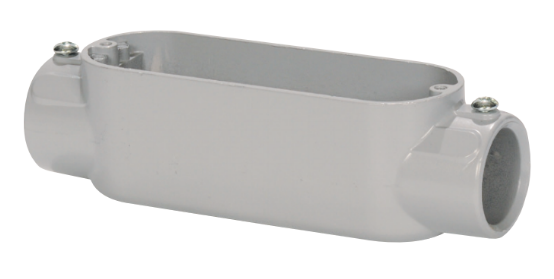

Sepco C3AT Aluminum Set-Screw Conduit Body

Product Description

The SEPCO C3AT is an aluminum set-screw conduit body with a design for access to conductors used in electrical applications. This conduit body is made from high-strength, copper-free aluminum alloy, ensuring resistance to corrosion and weather effects. Its design allows for easy mounting close to walls, making it suitable for various installation settings.

• Die-cast from copper-free aluminum for long-lasting corrosion resistance
• Facilitates access for pulling, splicing, and maintenance tasks
• Flat back design enables easy wall mounting

Product Highlights

Ideal for use with thinwall conduits, the C3AT provides reliable connections in electrical systems.

Product Information

Standard Information

• Trade Size: 1 inch
• Material: Die cast copper-free aluminum

Technical Specifications

• Suitable Conduit: EMT / Thinwall
• Maximum Wire Size: 3 #4 AWG
• Volume: 12.20 cu. in.
• Dimension A: 6.48 inches
• Dimension B: 1.88 inches
• Dimension C: 1.88 inches
