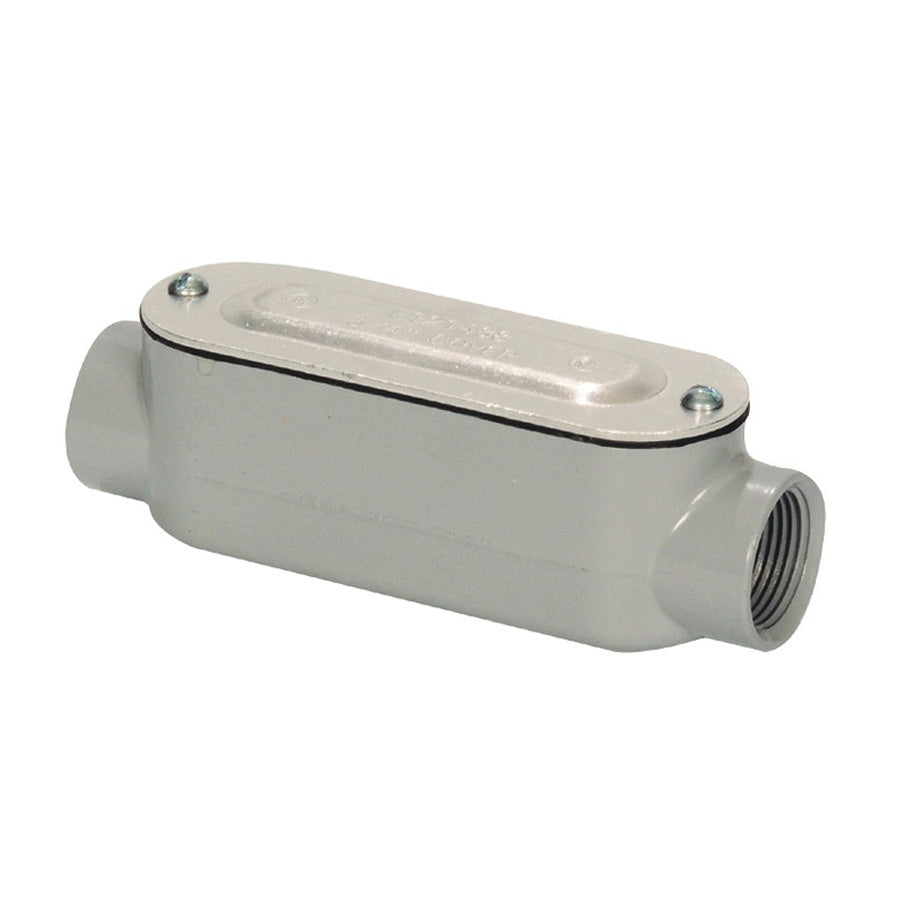

Sepco C3ACG Die Cast Copper Free Aluminum Type C Conduit Body With Cover And Gasket 1-Inch

Product Description

The Sepco C3ACG is a conduit body designed to protect and route rigid and intermediate metal conduits. This Type C conduit body features a one-inch trade size and is made of die-cast copper-free aluminum. It is equipped with two NPT threaded tapered straight hubs for secure connections.

• Constructed from die-cast copper-free aluminum
• Side access allows easy installation and maintenance
• Includes gasket and screw-on cover for complete protection

Product Highlights

This conduit body is suitable for applications requiring robust protection with easy access for conductor installation.

Product Information

Standard Information

• Brand: Sepco
• Manufacturer Part Number: C3ACG

Technical Specifications

• Trade Size: 1 Inch
• Conduit Body Style: Type C
• Number of Hubs: 2
• Cover Type: Screw-On
• Access: Side
• Conductor Capacity: (3) 4 AWG
• Cubic Capacity: 12.2 Cubic Inches
• Dimensions: 6.48 Inch Length x 1.88 Inch Width x 1.88 Inch Height
• Material: Copper-Free Die Cast Aluminum
• Standards: UL E198259 Listed, cULus Certified
• Finish: Aluminum Enamel
