Sepco C2ACG Die Cast Copper Free Aluminum Type C Conduit Body With Cover And Gasket 3/4 Inch

Product Description

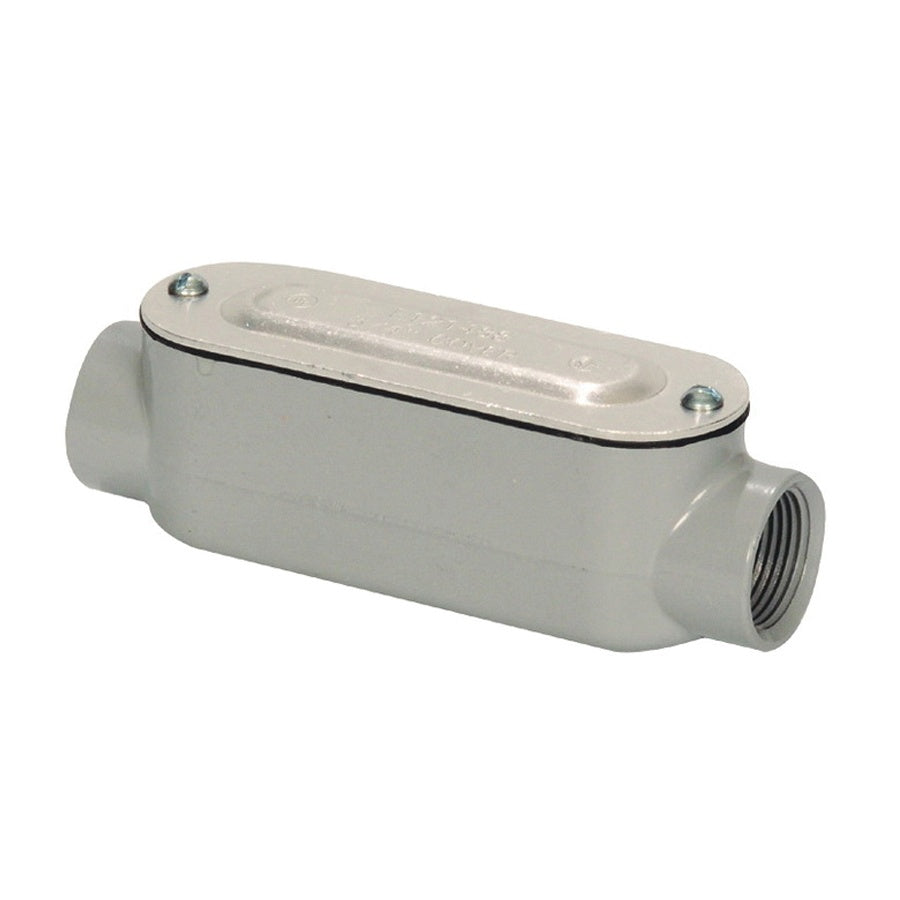

The Sepco C2ACG is a conduit body designed for rigidity and safety. It has a trade size of three-fourths of an inch and is made from die-cast copper-free aluminum, which enhances its durability. This conduit body is equipped with two NPT threaded hubs, allowing for seamless routing of rigid and IMC conduits. It has a cubic capacity of seven point three cubic inches and is capable of accommodating three six AWG conductors.

• Constructed from copper-free die-cast aluminum
• Includes a neoprene gasket and screw-on cover
• Offers side access for easy conductor maintenance

Product Highlights

This conduit body is cULus/UL listed, ensuring compliance with safety standards. The stamped cover with gasket prevents dust ingress, preserving conductor integrity. It features a flat back design for straightforward mounting on flat surfaces. Side access facilitates conductor pulling and splicing, proving essential for maintenance.

Product Information

Standard Information

• Brand: Sepco
• Part Number: C2ACG

Technical Specifications

• Trade Size: 3/4 Inch
• Conduit Body Style: Type C
• Number of Hubs: 2
• Cover Type: Screw-On
• Conductor Capacity: (3) 6 AWG
• Cubic Capacity: 7.3
• Material: Copper-Free Die Cast Aluminum
• Dimensions: 5.5 Inch Length x 1.56 Inch Width x 1.63 Inch Height
