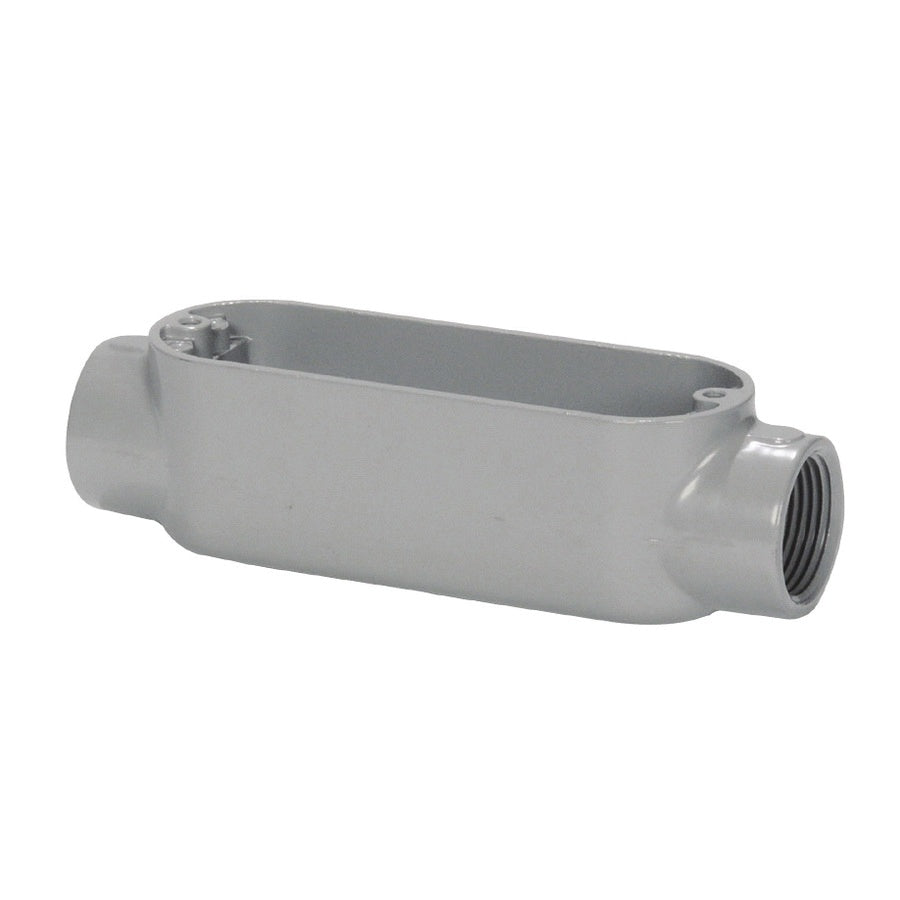

Sepco C1A Copper Free Die Cast Aluminum C Type Conduit Body 1/2-Inch

Product Description

The Sepco C1A is a copper-free die-cast aluminum conduit body designed for effective electrical applications. The conduit body has a trade size of one-half inch and a capacity of 4.35 cubic inches. It features a screw-on cover and is rated for NEMA FB-1.

• Constructed from corrosion-resistant copper-free aluminum
• Dimensions are four point six nine inches by one point three eight inches by one point three one inches
• Ideal for threaded rigid or IMC conduit systems

Product Highlights

This conduit body is suitable for easy mounting and allows quick access to conductors. Its flat back design simplifies installation, making it ideal for various applications such as pulling, splicing, and maintenance.

Product Information

Standard Information

• Brand: Sepco
• Manufacturer Part Number: C1A

Technical Specifications

• Trade Size: 1/2 Inch
• Conduit Body Style: Type C
• Number of Hubs: 2
• Cover Type: Screw-On
• Access: Side
• Cubic Capacity: 4.35
• Material: Copper-Free Die Cast Aluminum
• Dimensions: 4.69 Inch Length x 1.38 Inch Width x 1.31 Inch Height
• For Use With: Threaded Rigid/IMC Conduit
• Connection Type: NPT
• Standards: UL 514B, E198259 Listed, cULus Certified
