SEPCO C10A 4-Inch Type C Aluminum Conduit Body

Product Description

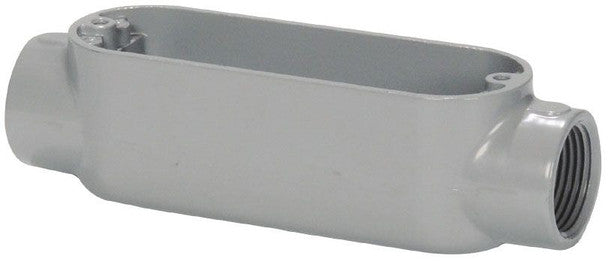

The SEPCO C10A is a Type C conduit body designed for threaded rigid conduit and intermediate metal conduit (IMC). It is made from die-cast, copper-free aluminum. This conduit body allows for easy access to conductors through its straight side opening. It comes with two hubs, both measuring four inches, aligned straight in relation to the body. Installation is done through threading, ensuring a secure fit. The rain-tight cover offers protection against the elements. The unit is also UL listed for safety standards in both the US and Canada under UL E198259.

• Designed for threaded installation with rigid conduit and IMC.
• Constructed from die-cast, copper-free aluminum.
• Rain-tight cover for environmental protection.

Product Highlights

This conduit body is ideal for electrical installations where a reliable and weather-resistant connection is needed.

Product Information

Standard Information

• Brand: SEPCO
• UPC: 78599443105

Technical Specifications

• MPN: C10A
• Material: Die-Cast/Copper-Free Aluminum
• Hub Size: 4 inches
• Dimensions: 16.12 inches L x 5.69 inches W x 5.63 inches H
• Number of Hubs: 2
• Approval: UL (Canada and US), UL E198259
• Configuration: C
• Installation Type: Threaded
• Access Opening: Straight Side
• Cover Type: Rain Tight
