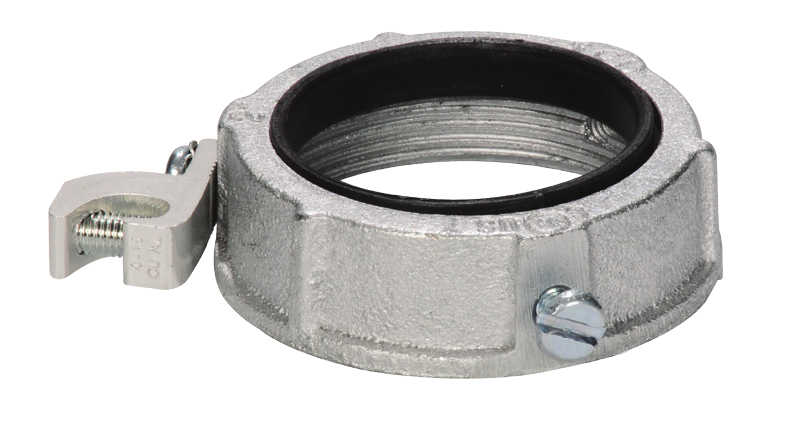

SEPCO 30BIOC 5 Inch Malleable Iron Insulated Grounding Bushing with Copper Lug

Product Description

The SEPCO 30BIOC is a five-inch malleable iron insulated grounding bushing designed for terminating threaded rigid and intermediate metal conduit (IMC) into electrical boxes or enclosures. This product features a thermoplastic liner rated for temperatures up to one hundred fifty degrees Celsius, which prevents wire insulation damage during installation and use.

• Terminates threaded rigid and IMC conduit to electrical enclosures and boxes.
• Features a one hundred fifty degrees Celsius rated thermoplastic liner to protect wire insulation.
• Constructed from malleable iron with an open-side lug, available with copper or tin-plated aluminum options.

Product Highlights

This grounding bushing serves to maintain reliable electrical connections while protecting the wire insulation.

Product Information

Standard Information

• Catalog Number: 30BIOC
• Trade Size: 5

Technical Specifications

• Grounding Lug Capacity: #6 - #250 MCM
• Dimension A: 4.80 inches
• Dimension B: 6.00 inches
• Dimension C: 1.13 inches
• Liner Material: Thermoplastic
• Liner Temperature Rating: 150 degrees Celsius
• Body Material: Malleable Iron
• Lug Material: Copper
