Sepco 29BIOL 4-In Mall Ins Bus 4 inch

Product Description

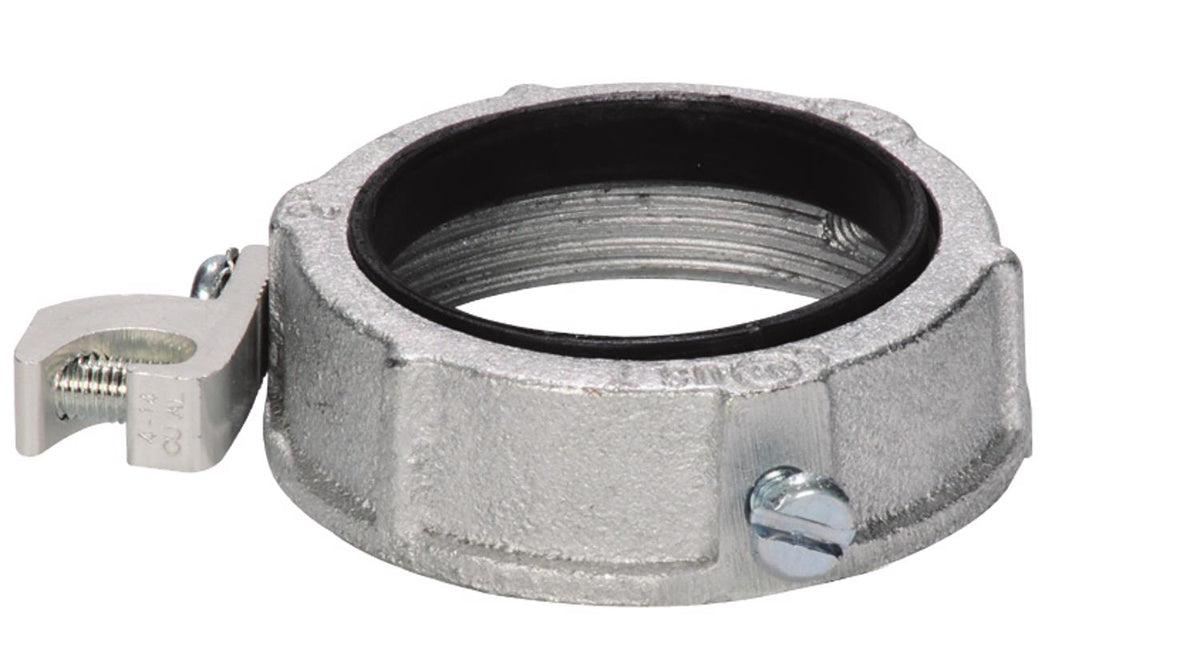

The SEPCO 29BIOL is a 4-inch insulated grounding bushing with an open-side, tin-plated aluminum lug. Constructed from zinc-plated malleable iron for low-pressure applications, it features a corrosion and chemical-resistant thermoplastic liner to prevent wire insulation damage. It is suitable for use with 14 AWG solid to 2/0 AWG stranded conductors.

• Insulated grounding bushing
• Open side tin-plated aluminum lug
• Zinc-plated malleable iron construction

Product Highlights

Features a corrosion-/chemical-resistant thermoplastic liner and threaded connection. Accommodates conductor sizes 14 AWG solid - 2/0 AWG stranded.

Product Information

Standard Information

• Brand: SEPCO
• Manufacturer Part Number: 29BIOL
• Country of Origin: United States

Technical Specifications

• Construction: Zinc-plated malleable iron
• Connection: Threaded
• Trade Size: 4 inches
• Conductor Size: 14 AWG solid - 2/0 AWG stranded
• Temperature Rating: 150 deg C
• Features: Corrosion-/chemical-resistant thermoplastic liner
• Brand: Sepco
• Material: Malleable Iron
• Finish: Zinc-plated
• Conduit Type: Rigid/IMC
• Connection Type: Set Screw, Threaded
• Insulation: Insulated
• Fitting Type: Grounding Bushing
• Size: 4 in
• Threaded: Yes
• Ground Lug Material: Aluminum
• Wire Size: 14 - 2/0 AWG
• MPN: 29BIOL
• Manufacturer Part Number: 29BIOL
