Sepco 28BIOL Insulated Grounding Bushing With Lug 3-1/2 Inch

Product Description

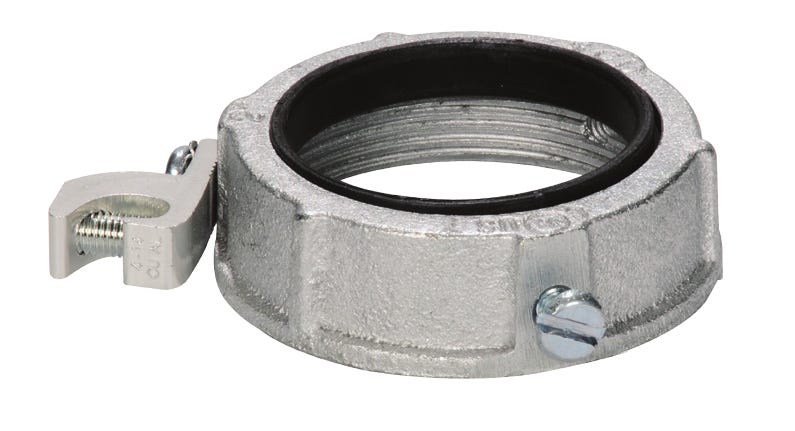

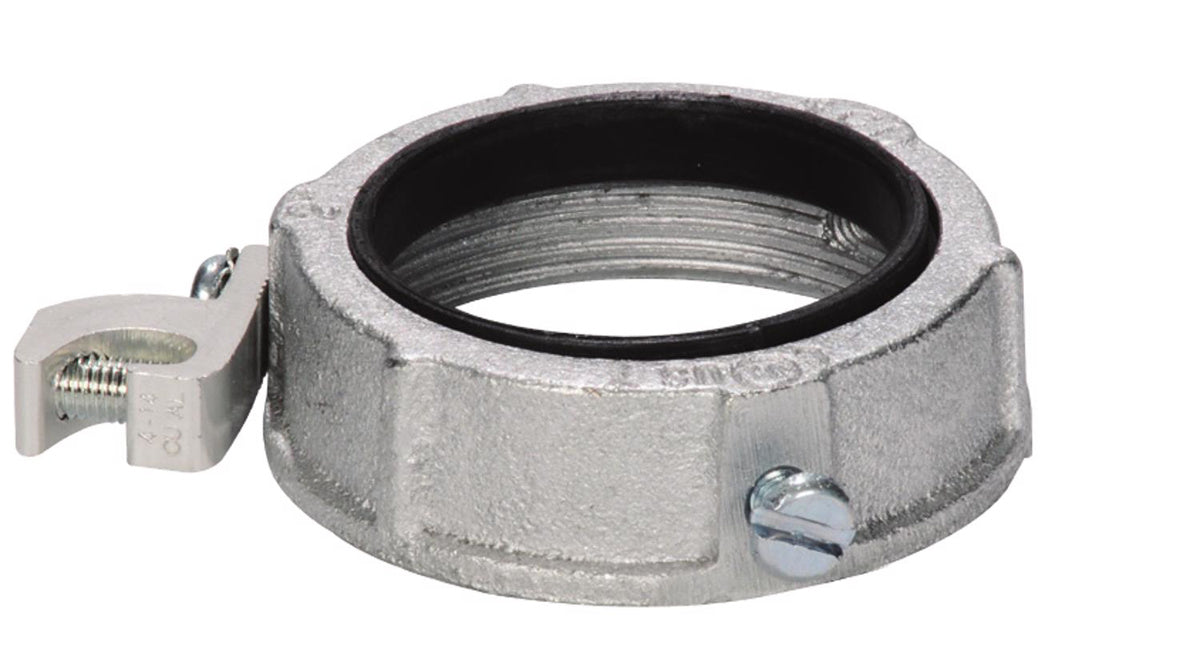

The SEPCO 28BIOL insulated grounding bushing with lug is used with a locknut to terminate threaded rigid and IMC conduit to a box or enclosure, providing a smooth pulling surface. Its thermoplastic liner prevents damage to wire insulation and is rated at 150°C. The fitting is made from malleable iron with an open-side tin-plated aluminum lug and a zinc-plated finish.

• The plastic liner won’t chip, crack, swell, or shrink and resists corrosion, chemicals, and temperature extremes.
• Set-screw provided with each fitting locks bushing in any desired position.
• UL Listed for use with Copper or Aluminum Grounding Conductors.

Product Highlights

This grounding bushing is suitable for terminating threaded rigid and IMC conduit, ensuring wire insulation protection and secure positioning.

Product Information

Standard Information

• Brand: SEPCO
• Manufacturer Part Number: 28BIOL

Technical Specifications

• Trade Size: 3-1/2”
• GROUNDING LUG CAPACITY: #14 - #2/0
• Material: Malleable Iron
• Finish: Zinc-plated
• Conduit Type: Rigid/IMC
• Connection Type: Set Screw, Threaded
• Insulation: Insulated
• Fitting Type: Grounding Bushing
• Threaded: Yes
• Ground Lug Material: Aluminum
• Wire Size: 14 - 2/0 AWG
• Dim A: 3.38
• Dim B: 4.42
• Dim C: 1.10
