Sepco 27BIOL Malleable Iron Insulated Grounding Bushing 3 Inch

Product Description

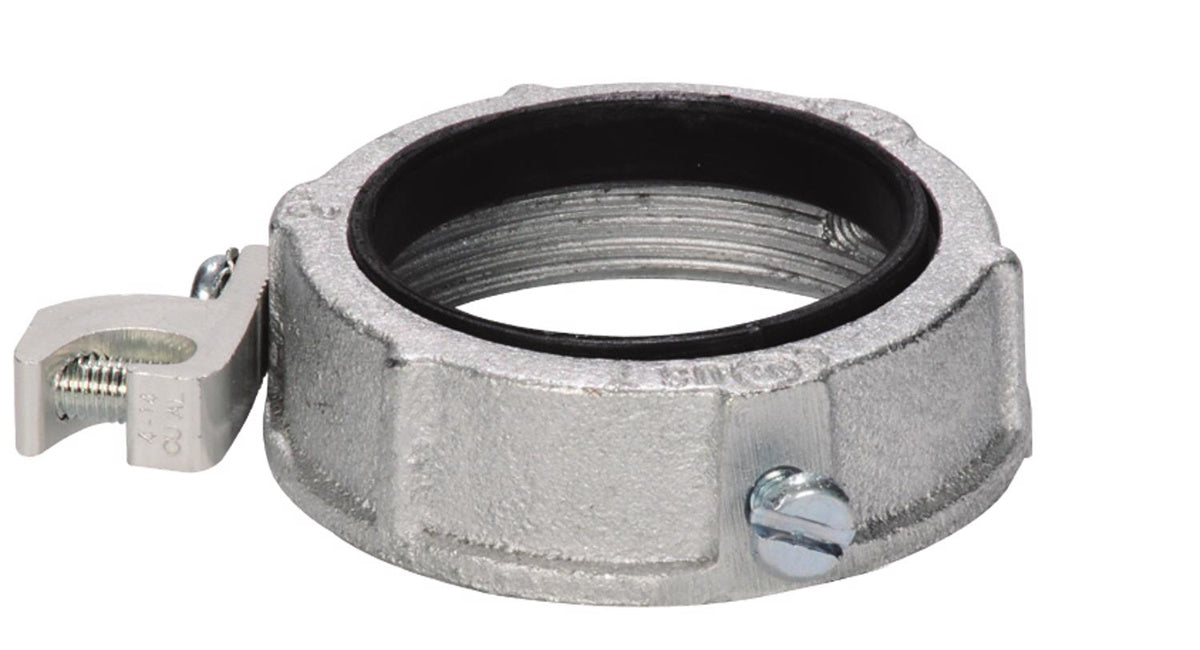

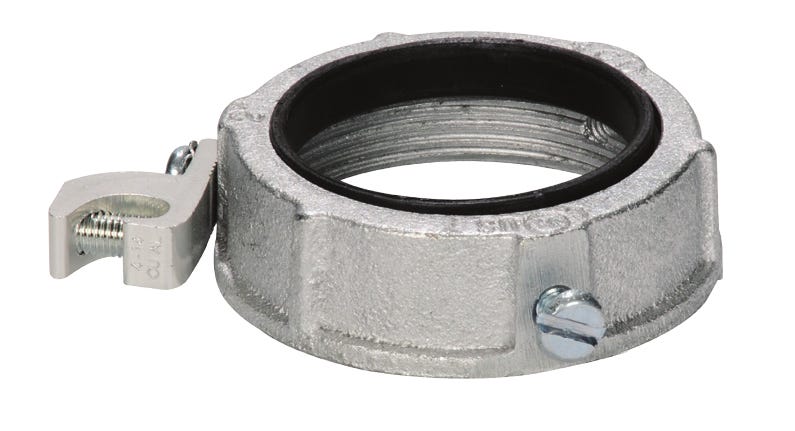

The SEPCO 27BIOL is an insulated grounding bushing with an open side tin-plated aluminum lug, featuring zinc-plated malleable iron construction suitable for low-pressure applications. It has a threaded connection and trade size of 3 inches. The thermoplastic liner resists corrosion and chemicals, preventing damage to wire insulation. It accommodates conductor sizes 14 AWG solid to 2/0 AWG stranded and withstands a temperature rating of 150 degrees Celsius.

• Features a corrosion and chemical-resistant thermoplastic liner.
• Suitable for conductor sizes 14 AWG solid to 2/0 AWG stranded.
• UL Listed for use with Copper or Aluminum Grounding Conductors.

Product Highlights

This 3-inch grounding bushing is constructed from zinc-plated malleable iron with a thermoplastic liner and aluminum lug.

Product Information

Standard Information

• Brand: SEPCO
• Manufacturer Part Number: 27BIOL

Technical Specifications

• Construction: Zinc-plated malleable iron
• Application: Low-pressure applications
• Connection: Threaded
• Trade Size: 3 inches
• Liner: Corrosion-/chemical-resistant thermoplastic
• Conductor Size: 14 AWG solid - 2/0 AWG stranded
• Temperature Rating: 150 deg C
• Grounding Lug Capacity: #14 - #2/0
• Material: Malleable Iron
• Finish: Zinc-plated
• Conduit Type: Rigid/IMC
• Insulation: Insulated
• Fitting Type: Grounding Bushing
• Threaded: Yes
• Ground Lug Material: Aluminum
• Wire Size: 14 - 2/0 AWG
• Brand: Sepco
• MPN: 27BIOL
• UPC: Does not apply
• Category: STEEL RIGID CONDUIT FITTINGS
