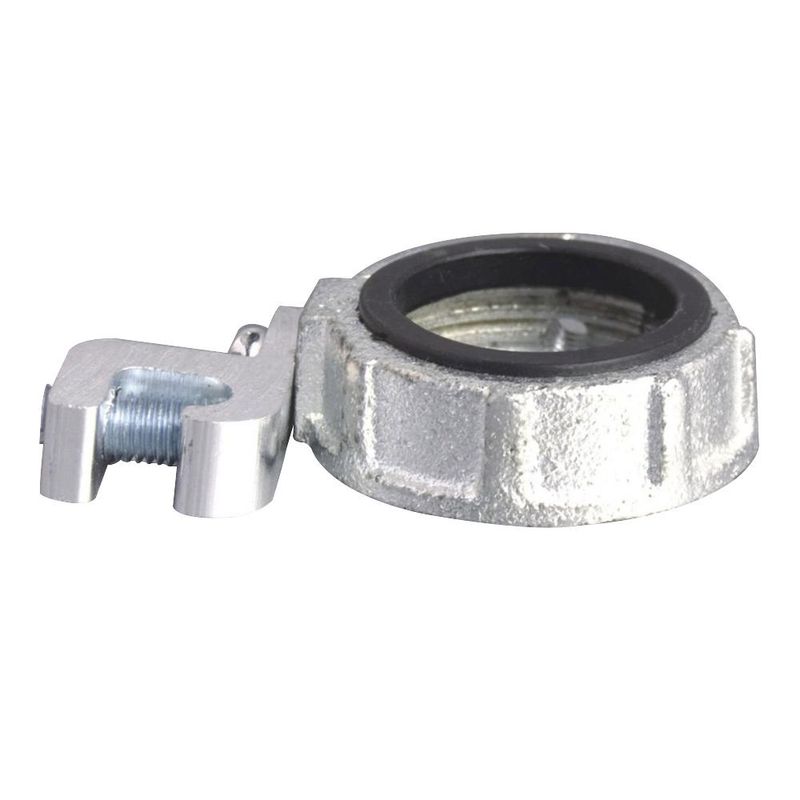

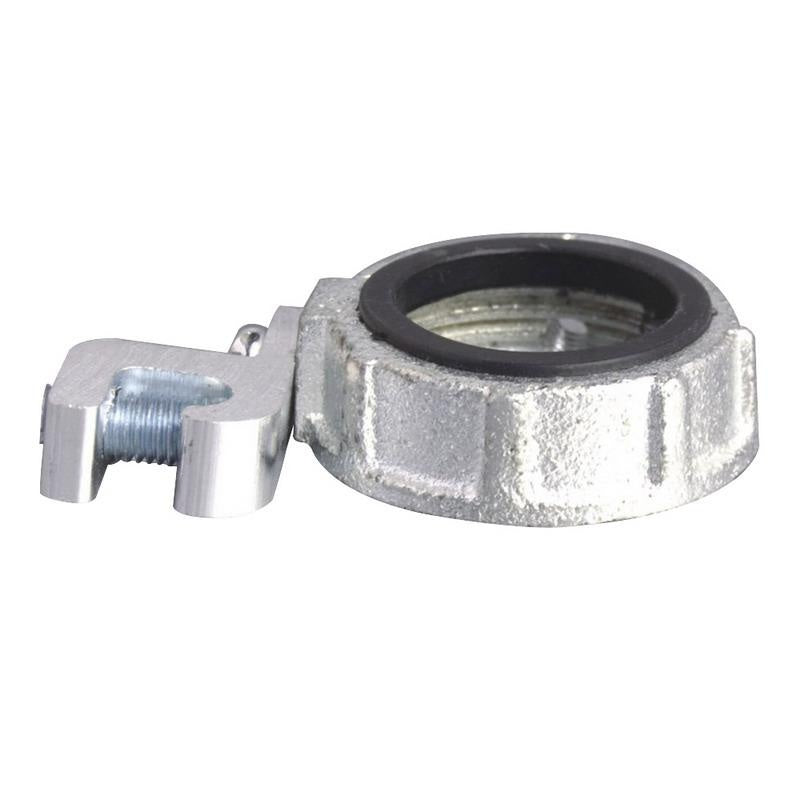

SEPCO 27BIOL 3-Inch Insulated Grounding Bushing

Product Description

The SEPCO 27BIOL is a three-inch insulated grounding bushing suitable for use with threaded rigid and IMC conduit. Made from zinc-plated malleable iron, it provides the necessary mechanical strength required for secure installations.

• Designed for conductors from 14 AWG solid to 2/0 AWG stranded.
• Includes an open-side aluminum lug with tin plating.
• Features a set screw for secure positioning of the bushing.

Product Highlights

This bushing offers a thermoplastic liner that provides electrical insulation with a temperature rating of up to 150 degrees Celsius, ensuring durability and compliance with industry standards.

Product Information

Standard Information

• Brand: SEPCO
• Category: Steel Rigid Conduit Fittings

Technical Specifications

• Manufacturer Part Number: 27BIOL
• Standards: UL 514B, E88878 Listed, CSA Certified
• Temperature Rating: 150 degrees Celsius
• Trade Size: 3 Inch
• Material: Malleable Iron, Open Side Aluminum Lug
• Outside Diameter: 4.06 inches
• Length: 1.1 inches
• Conductor Range: 14 AWG Solid - 2/0 AWG Stranded
