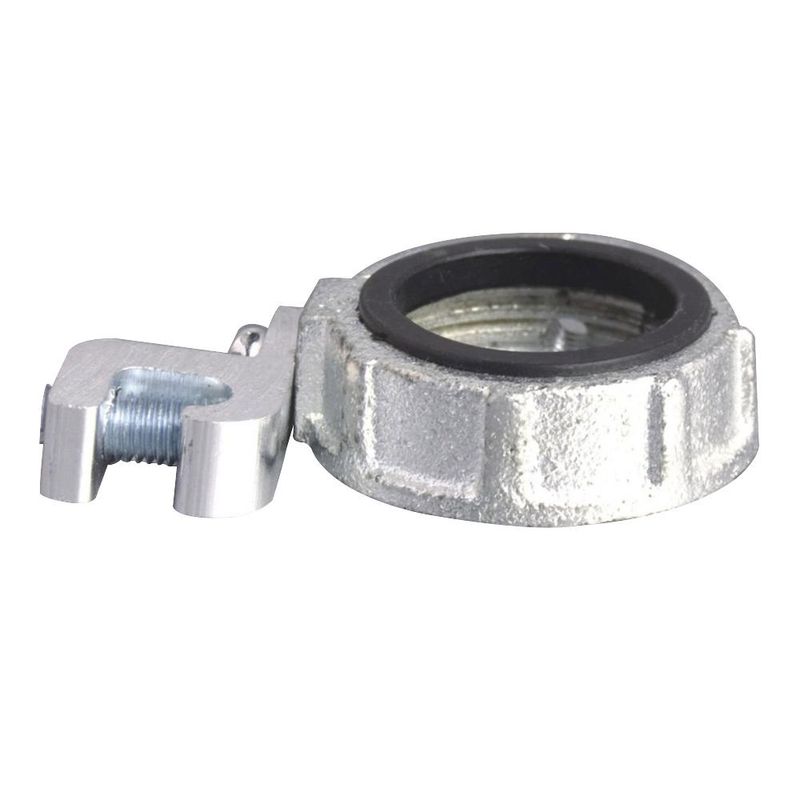

SEPCO 26BIZOL 2-1/2 Insulated Grounding Bushing

Product Description

The SEPCO 26BIZOL is a 2-1/2 inch insulated grounding bushing that is suitable for threaded rigid and intermediate metal conduit applications. This bushing is made from die-cast zinc and comes equipped with an open-side aluminum lug. It can accommodate conductors ranging from 14 AWG to 1/0 AWG, making it versatile for various grounding needs.

• Trade size of 2-1/2 inches.
• Constructed from durable die-cast zinc.
• Compatible with threaded rigid and IMC conduit.

Product Highlights

This grounding bushing ensures secure connections of grounding conductors to conduit systems. It is rated for a temperature of 150 degrees Celsius, making it suitable for a range of environments.

Product Information

Standard Information

• Brand: SEPCO
• Category: Steel Rigid Conduit Fittings

Technical Specifications

• Trade Size: 2-1/2 Inch
• Conductor Range: 14-1/0 AWG
• Outside Diameter: 3.219 inches
• Connection Type: Threaded
• For Use With: Threaded Rigid/IMC Conduit
• Temperature Rating: 150 degrees Celsius
• Length: 0.875 inches
• Material: Die Cast Zinc, Open Side Aluminum Lug
