SEPCO 26BIOL Insulated Grounding Bushing 2-1/2 Inch

Product Description

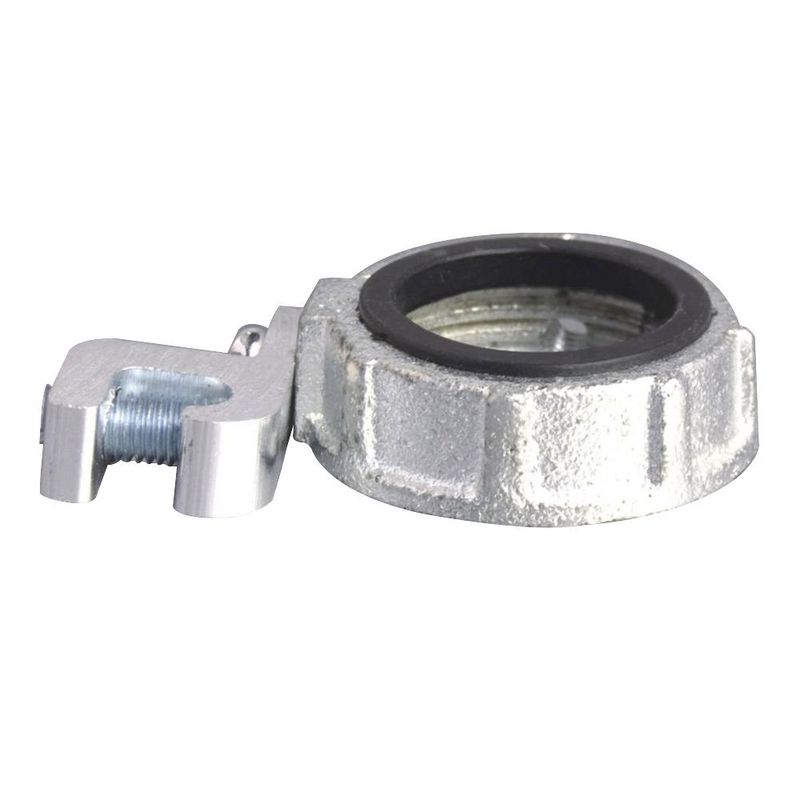

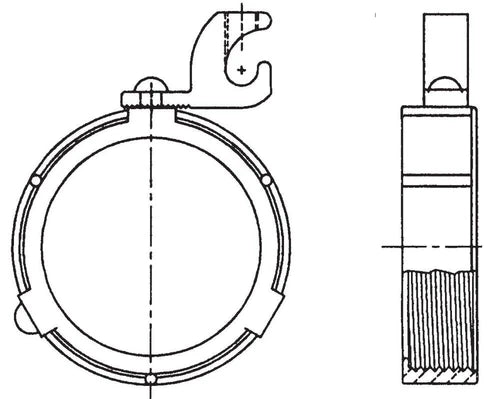

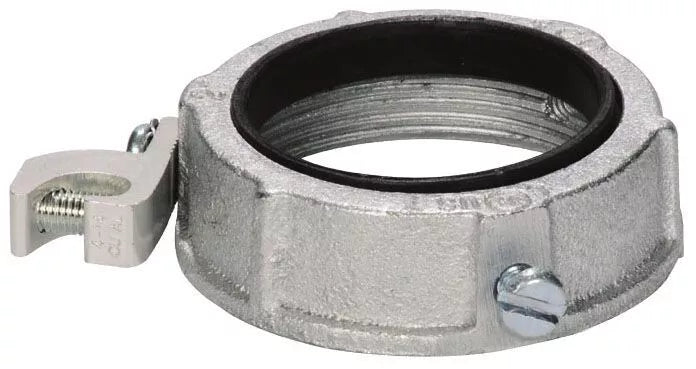

The SEPCO 26BIOL is a two and a half inch insulated grounding bushing made from durable malleable iron. It is designed for use with threaded rigid and IMC conduit. The surface features a zinc-plated finish, and it includes a tin-plated aluminum lug for effective grounding. The bushing accommodates conductor sizes from 14 AWG solid to 2/0 AWG stranded. Its outside diameter measures three point thirty-eight inches, and the length is one point one inches. This product is suitable for applications where a temperature rating of up to one hundred fifty degrees Celsius is required.

• Constructed from malleable iron with a zinc-plated finish.
• Accommodates wire sizes from 14 AWG solid to 2/0 AWG stranded.
• Designed for use with threaded rigid and IMC conduit.

Product Highlights

This grounding bushing ensures safe and reliable connections in electrical systems.

Product Information

Standard Information

• Brand: SEPCO
• MPN: 26BIOL

Technical Specifications

• UPC: 785994250173
• Material: Malleable Iron, Open Side Aluminum Lug
• Finish: Zinc Plated and Tin Plated Lug
• Conduit Type: Rigid/IMC
• Connection Type: Threaded
• Insulation: Insulated
• Fitting Type: Grounding Bushing
• Size: 2-1/2 inch
• Wire Size: 14 - 2/0 AWG
• Outside Diameter: 3.38 inches
• Temperature Rating: 150 degrees Celsius
• Length: 1.1000 inches
