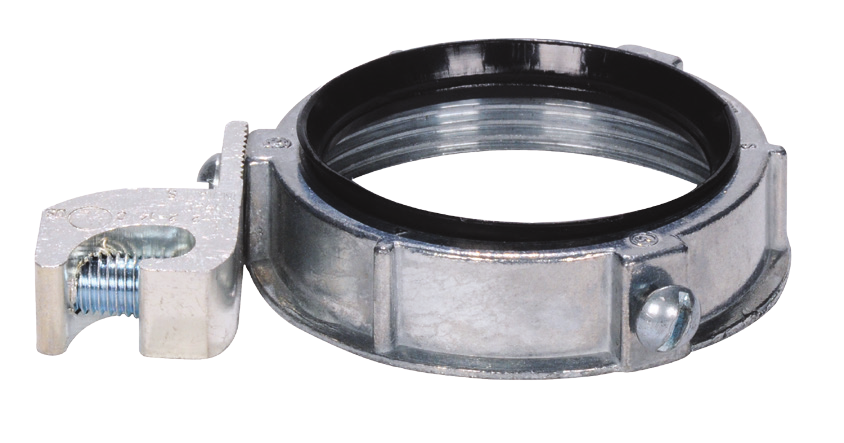

SEPCO 25BIZ0L Zinc Insulated Grounding Bushing

Product Description

The SEPCO 25BIZ0L is a zinc insulated grounding bushing used to connect threaded rigid and IMC conduit to electrical boxes or enclosures. This product offers a smooth surface for wire pulling, which minimizes insulation damage during installation. Its thermoplastic liner withstands temperatures up to one hundred fifty degrees Celsius and is resistant to corrosion and chemicals.

• Features a liner that resists chipping, cracking, and swelling.
• Includes a set-screw for secure positioning.
• UL Listed for compatibility with both copper and aluminum conductors.

Product Highlights

This grounding bushing is designed for reliability and durability in various electrical applications.

Product Information

Standard Information

• Catalog Number: 25BIZ0L
• Trade Size: 2 inches

Technical Specifications

• Grounding Lug Capacity: #14 - #1/0
• DIM A: 2.500 inches
• DIM B: 2.625 inches
• DIM C: 0.625 inches
• Unit Pack: 25
• Master Pack: 250
• Standard Materials: Zinc Die Cast/Open side tin plated aluminum lug
• UL Listed: E93683
