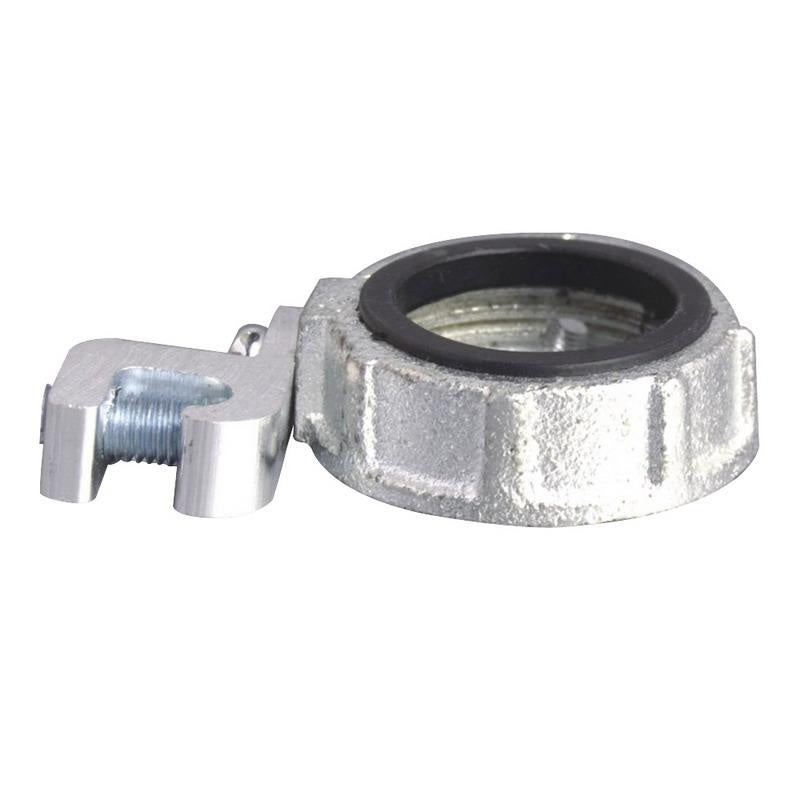

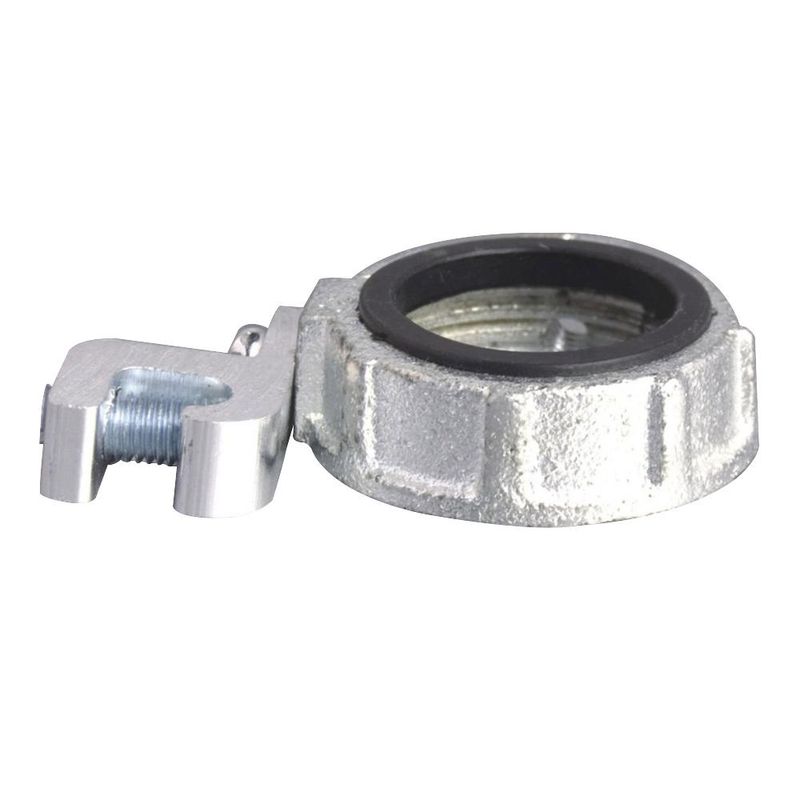

Sepco 25BI4L Insulated Grounding Bushing 2 Inch

Product Description

The SEPCO 25BI4L is a 2-inch insulated grounding bushing designed for use with threaded rigid or IMC conduit. Made from zinc-plated malleable iron, it ensures durability and strength. It features an open-side aluminum lug with a tin-plated finish for reliable connections.

• Includes a set screw to keep the bushing fixed in place.
• Thermoplastic liner rated for a maximum of 150 degrees Celsius.
• Compatible with conductors from 14 AWG solid to 4 AWG stranded.

Product Highlights

This insulated grounding bushing is UL 514B listed and CSA certified, making it suitable for various electrical installations. It simplifies the termination of threaded rigid and IMC conduit to boxes or enclosures.

Product Information

Standard Information

• Brand: SEPCO
• UPC: 78599425011

Technical Specifications

• Standards: UL 514B, E93683 Listed, CSA Certified
• Temperature Rating: 150 degrees Celsius
• Trade Size: 2 inches
• Material: Malleable Iron, Open Side Aluminum Lug
• Outside Diameter: 2.81 inches
• Length: 0.85 inches
• For Use With: Threaded Rigid/IMC Conduit
• Finish: Zinc Plated and Tin Plated Lug
• Connection Type: Threaded
• Conductor Range: 14 AWG Solid - 4 AWG Stranded
• Fitting Type: Grounding Bushing
• Size: 2 inches
• Threaded: Yes
• Wire Size: 14 - 4 AWG
• Commodity Code: 22100
