Sepco 24BI4L Malleable Iron Insulated Grounding Bushing 1-1/2 Inch

Product Description

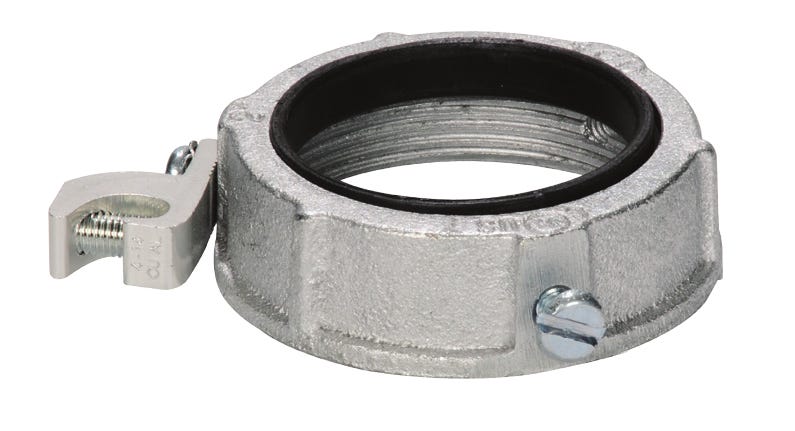

The SEPCO 24BI4L is an insulated grounding bushing with an open side tin-plated aluminum lug, featuring zinc-plated malleable iron construction. Measuring 2.31 inches in diameter and 0.8 inches in height, this bushing has a 1-1/2 inch trade size and a threaded connection. The corrosion and chemical-resistant thermoplastic liner prevents damage to wire insulation and accommodates conductor sizes from 14 AWG solid to 4 AWG stranded.

• Insulated grounding bushing
• Open side tin-plated aluminum lug
• Zinc-plated malleable iron construction

Product Highlights

Insulated grounding bushing with thermoplastic liner and zinc-plated malleable iron construction. Ideal for terminating threaded rigid and IMC conduit.

Product Information

Standard Information

• Brand: SEPCO
• Manufacturer Part Number: 24BI4L

Technical Specifications

• Construction: Zinc-plated malleable iron
• Connection: Threaded
• Trade Size: 1-1/2 inches
• Temperature Rating: 150 deg C
• Conductor Size: 14 AWG solid - 4 AWG stranded
