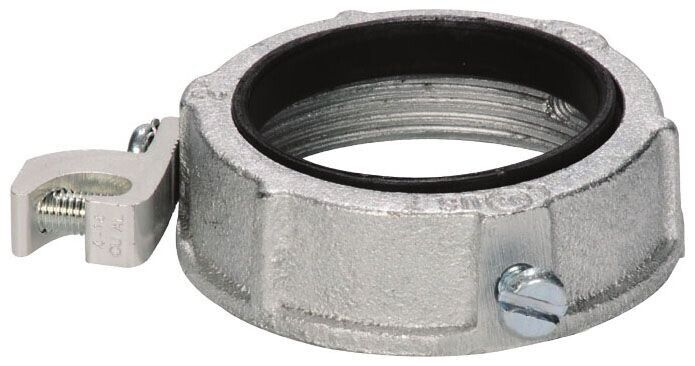

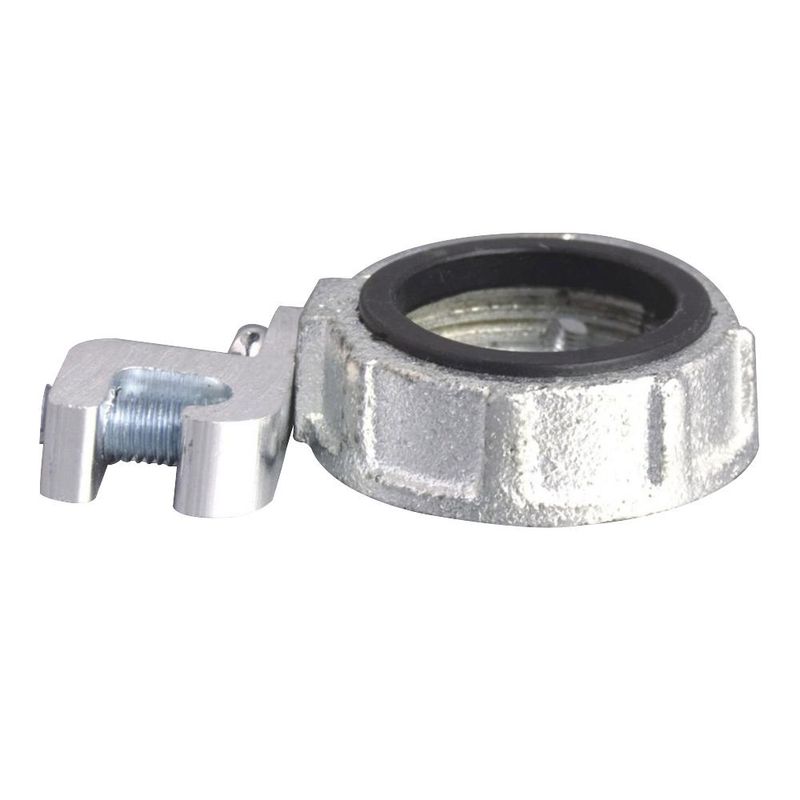

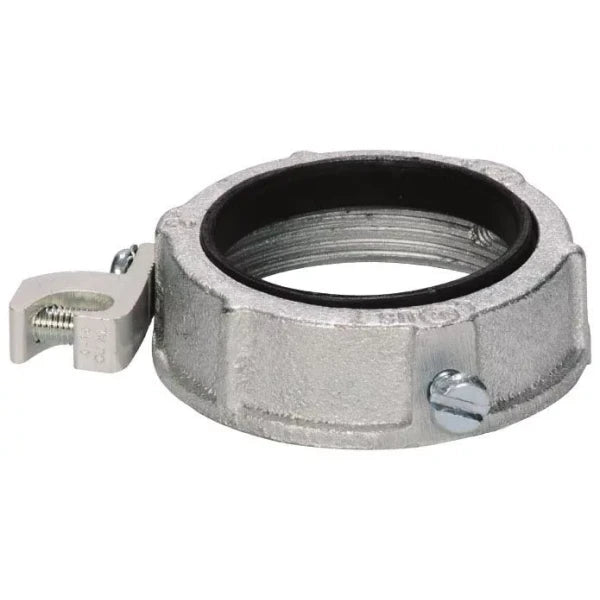

SEPCO 24BI4L Insulated Grounding Bushing 1-1/2 Inch

Product Description

The SEPCO 24BI4L is a grounded bushing made for IMC and rigid conduit. This one and one-half inch bushing uses a threaded connection along with a set screw. It supports wire sizes from fourteen to four AWG. Constructed from malleable iron, the bushing includes an open-side lug made of tin-plated aluminum for copper or aluminum conductors. With an insulated throat type, the product has a diameter of two point thirty-three inches and a height and width of zero point eight inches. This item is UL approved for use in both Canada and the United States.

• Accommodates wire sizes from 14 to 4 AWG.
• Constructed with malleable iron and has an insulated throat.
• Designed for IMC and rigid conduit systems.

Product Highlights

This grounding bushing is essential for secure electrical connections in conduit systems.

Product Information

Standard Information

• Type: Threaded, Set Screw
• Trade Size: 1-1/2 Inch

Technical Specifications

• Wire Size: 14 to 4 AWG
• Lug Type: Malleable Iron/Open Side Tin Plated Aluminum
• Conductor Material: Copper/Aluminum
• Throat Type: Insulated
• Diameter: 2.33 Inch
• Height: 0.8 Inch
• Width: 0.8 Inch
• Approval: UL (Canada and US)
