Sepco 23BI4L Insulated Grounding Bushing With Lug 1-1/4 Inch

Product Description

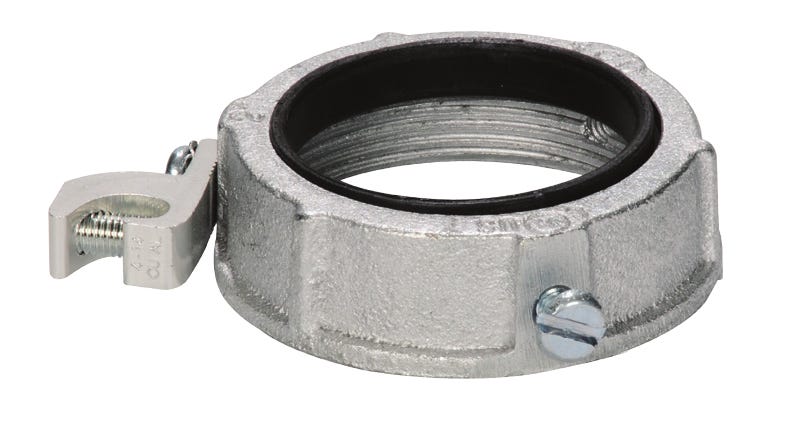

The SEPCO 23BI4L insulated grounding bushing features an open side tin-plated aluminum lug and zinc-plated malleable iron construction. Designed for low-pressure applications, it measures 2.13 inches in diameter and 0.74 inches in height. The corrosion and chemical-resistant thermoplastic liner prevents damage to wire insulation. This bushing is suitable for terminating threaded rigid and IMC conduit to a box or enclosure.

• Insulated grounding bushing with open side tin-plated aluminum lug
• Features a corrosion-/chemical-resistant thermoplastic liner
• UL Listed for use with Copper or Aluminum Grounding Conductors

Product Highlights

Insulated grounding bushing with threaded connection and thermoplastic liner rated at 150°C. Accommodates conductor sizes 14 AWG solid to 4 AWG stranded.

Product Information

Standard Information

• Brand: SEPCO
• Manufacturer Part Number: 23BI4L

Technical Specifications

• Material: Malleable iron
• Connection: Threaded
• Trade Size: 1-1/4 inches
• Conductor Size: 14 AWG solid - 4 AWG stranded
• Temperature Rating: 150 deg C
• Features: Insulated, corrosion-/chemical-resistant thermoplastic liner
• GROUNDING LUG CAPACITY: #14 - #4
• Dim A: 1.80 in
• Dim B: 2.10 in
• Dim C: 0.74 in
• Size: 1-1/4 In.
