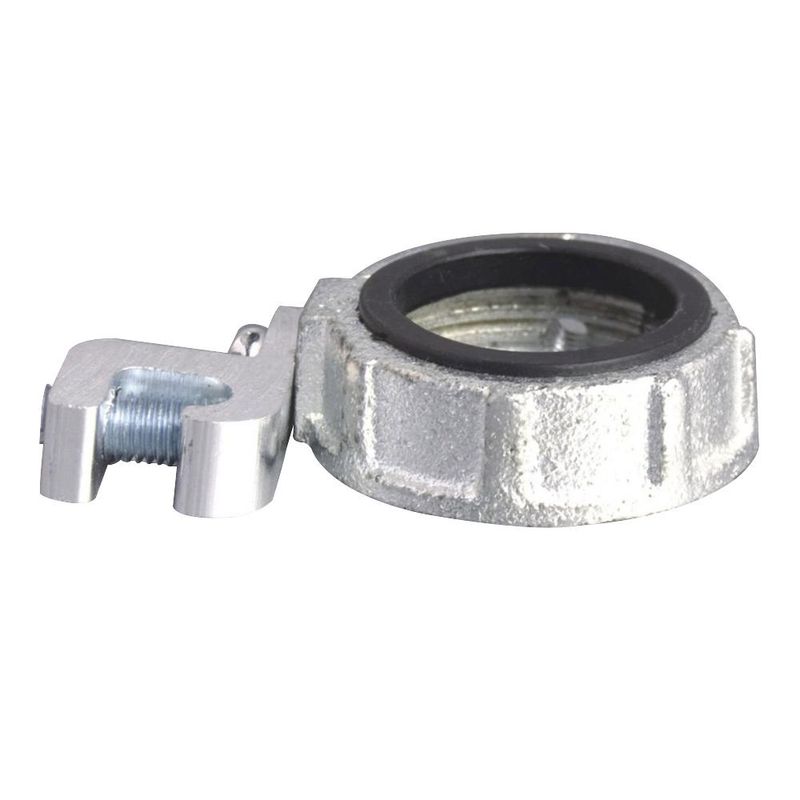

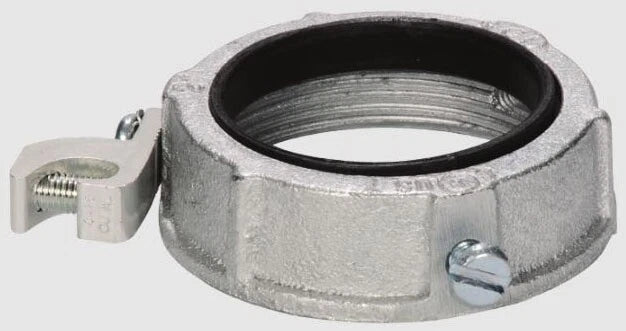

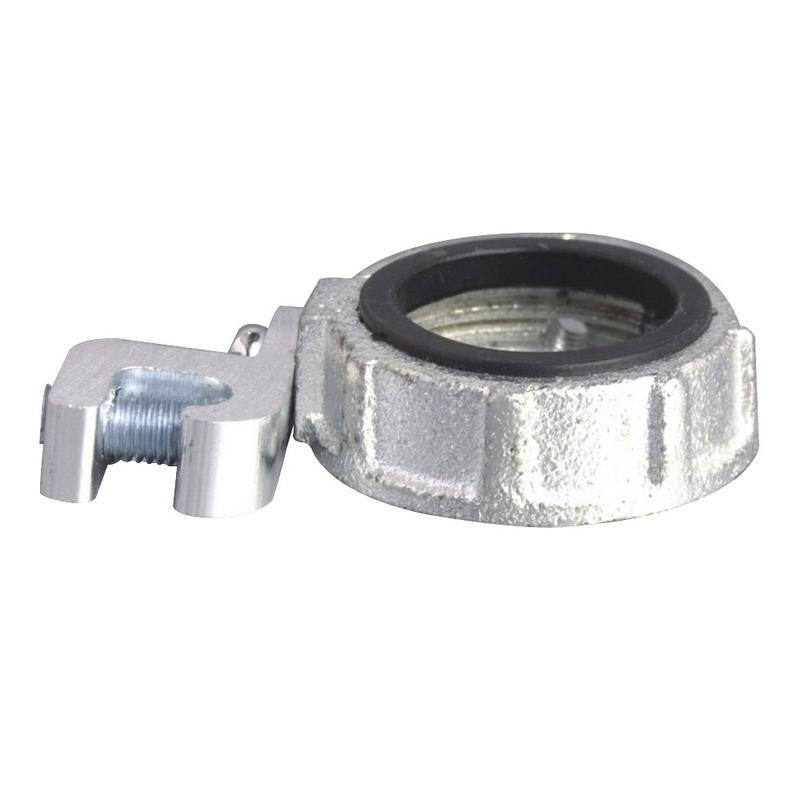

Sepco 22BI4L Malleable Iron Insulated Grounding Bushing 1 inch

Product Description

The Sepco 22BI4L is a malleable iron insulated grounding bushing designed for threaded rigid and IMC conduit applications. This product features a zinc-plated finish for durability and a thermoplastic liner that prevents wire damage, allowing it to safely withstand temperatures up to one hundred fifty degrees Celsius. The bushing comes equipped with a set screw for secure placement and includes an open-side, tin-plated aluminum lug that accommodates conductor sizes from fourteen AWG solid to four AWG stranded.

• Constructed from malleable iron for strength.
• Rated for temperatures up to one hundred fifty degrees Celsius.
• UL 514B listed and CSA certified for safety.

Product Highlights

This grounding bushing ensures reliable electrical connections and prevents insulation damage, making it ideal for various electrical installations.

Product Information

Standard Information

• Brand: Sepco
• Manufacturer Part Number: 22BI4L

Technical Specifications

• Standards: UL 514B, E93683 Listed, CSA Certified
• Temperature Rating: 150 degrees Celsius
• Trade Size: 1 inch
• Material: Malleable Iron, Open Side Aluminum Lug
• Outside Diameter: 1.75 inches
• Length: 0.72 inches
• Conductor Range: 14 AWG Solid to 4 AWG Stranded
