Sepco 21bi4l insulated grounding bushing 3/4 inch

Product Description

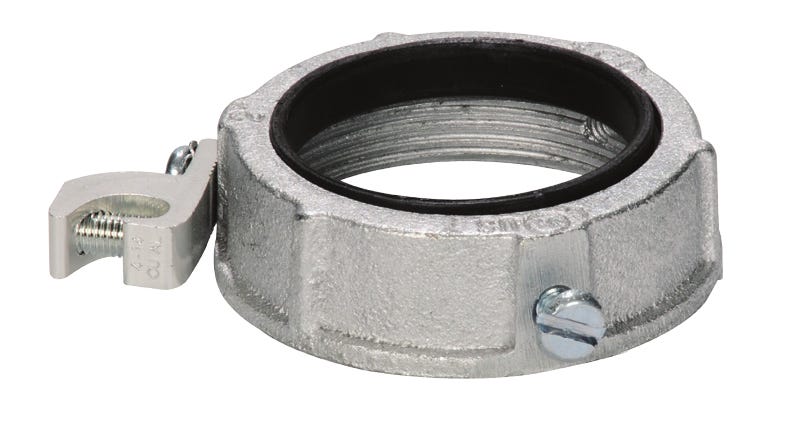

The SEPCO 21BI4L is an insulated grounding bushing with an open side tin-plated aluminum lug, featuring zinc-plated malleable iron construction for low-pressure applications. It has a threaded connection and a trade size of 3/4 Inch. The corrosion-/chemical-resistant thermoplastic liner prevents damage to wire insulation. Bushing accommodates conductor of size 14 AWG solid - 4 AWG stranded.

• Insulated grounding bushing
• Open side tin-plated aluminum lug
• Zinc-plated malleable iron construction

Product Highlights

The plastic liner resists corrosion, chemicals, and temperature extremes. UL Listed for use with Copper or Aluminum Grounding Conductors.

Product Information

Standard Information

• Brand: SEPCO
• Manufacturer Part Number: 21BI4L

Technical Specifications

• Trade Size: 3/4 Inch
• Material: Malleable Iron, Aluminum, Thermoplastic
• Application: Low-Pressure
• Connection: Threaded
• Temperature Rating: 150 deg C
• Conductor Size: 14 AWG solid - 4 AWG stranded
• STANDARD MATERIALS: Malleable Iron/Open side tin plated aluminum lug.
• STANDARD FINISH: Zinc plated
• UL LISTED: E93683
• GROUNDING LUG CAPACITY: #14 - #4
• Size: 3/4 in.
