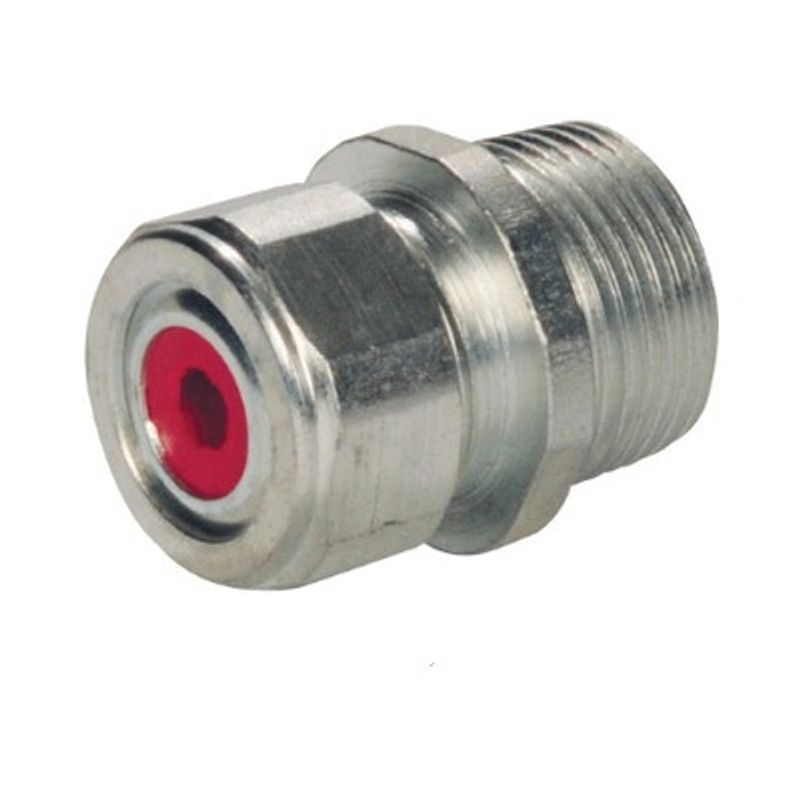

Sepco 1250 CG125-1250 1-1/4 Inch MNPT Cord Grip

Product Description

The Sepco 1250 CG125-1250 is a cord grip strain relief connector designed with a one and one-quarter inch trade size and MNPT connection type. It supports cable sizes ranging from one point fifteen inches to one point twenty-five inches. This connector is made with a durable steel body and steel gland nut, complemented by a neoprene grommet for added strength.

• Features a one and one-quarter inch MNPT connection.
• Constructed with steel components and a neoprene grommet.
• Supports cable sizes between one point fifteen inches and one point twenty-five inches.

Product Highlights

This connector provides effective strain relief for various cable types and is suitable for demanding environments due to its NEMA 4 rating. The zinc-plated finish adds corrosion resistance, ensuring long-lasting performance.

Product Information

Standard Information

• Brand: Sepco
• Manufacturer Part Number: CG125-1250

Technical Specifications

• Trade Size: 1-1/4 Inch
• NEMA Rating: NEMA 4
• Connection Type: MNPT
• Conductor Size: 1.15 - 1.25 Inch Cable Range
• Color: Red
• Material: Steel Body/Steel Gland Nut, Neoprene Grommet
• Finish: Zinc Plated
