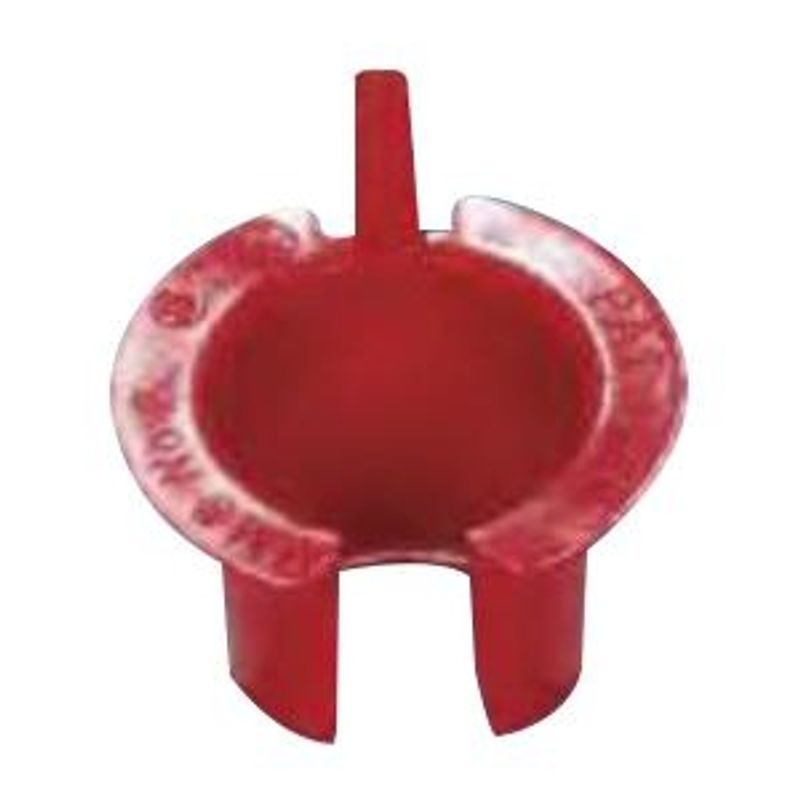

SEPCO 0 Anti-Short Bushing 5/16 Inch

Product Description

The SEPCO 0 Anti-Short Bushing is made from plastic, specifically designed for use with armored cables and flexible metallic conduits. This bushing has a trade size of five sixteenth inches and measures zero point fifty seven inches in length and zero point sixty four inches in width. It is compatible with conductor ranges of fourteen two AWG, fourteen three AWG, and twelve two AWG armored cables. The bushing is inserted into the inside diameter of termination points, providing insulation to protect conductors from sharp edges of raceways.

• Constructed of plastic.
• Features a trade size of 5/16-inch.
• Compatible with flexible metal conduit and armored cable terminations.

Product Highlights

This bushing is essential for ensuring safe and reliable connections in electrical installations.

Product Information

Standard Information

• Brand Name: SEPCO
• Material: Plastic

Technical Specifications

• Trade Size: 5/16 Inch
• Conductor Range: 14-2 AWG, 14-3 AWG, 12-2 AWG Armored
• Dimensions: 0.64 Inch Width
• Length: 0.57 Inch
• For Use With: Armored Cable and Flexible Metallic Conduit
• Commodity Code: Bx, Mc, Armored Cable Fittings
• GTIN: 00785994555063
• UPC: 78599455506
