Senva P5-0500-1LX Dry Diff. Press. 5 inches Universal, w/ LCD, No Probe

Product Description

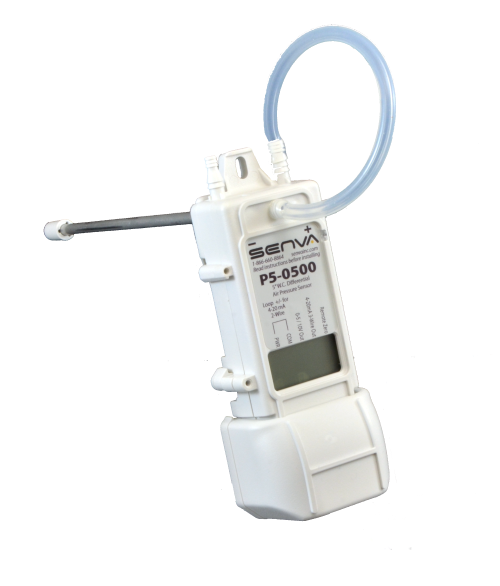

The Senva P5-0500-1LX universal dry media pressure transmitter accurately measures multiple ranges optimized for building (zone) pressure, filter measurement, and static duct applications. Selectable outputs and uni/bi-directional readings reduce inventory. Innovative probe integrates with unit or can be mounted remotely for static pressure.

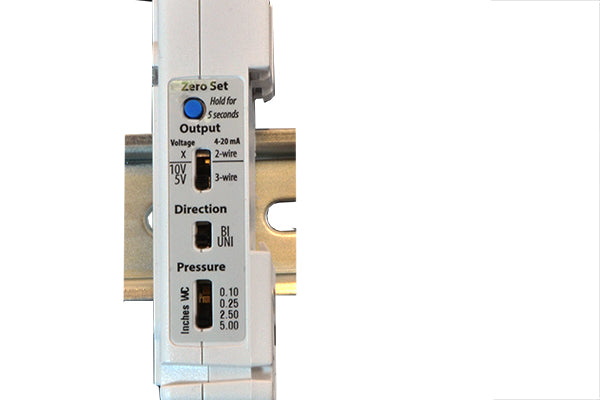

• Selectable outputs 4-20mA loop powered, 4-20 mA 3-wire, 0-5VDC, 0-10VDC
• Optional LCD display; LED indicator standard
• Zero calibration push button and remote contact input

Product Highlights

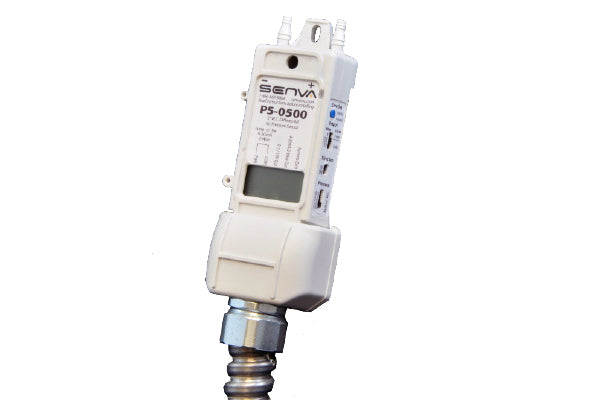

The P5 series is accurate, rugged and reliable. The universal design reduces inventory and installation time. The LCD display provides local indication of pressure.

Product Information

Standard Information

• Brand: SENVA
• Manufacturer Part Number: P5-0500-1LX
• Country of Origin: USA

Technical Specifications

• Power Supply: 12-30VDC/24VAC(1), 30mA max
• Output type: Selectable outputs 4-20mA loop powered, 4-20 mA 3-wire, 0-5VDC, 0-10VDC
• Output scaling: 0-5" (Selectable 0.1, 0.25, 2.5, 5.0, 0.1, 0.25, 2.5, 5.0" WC)
• Operating Temperature Operating range: -4 to 140F (-20 to 60 C)
• Compensated range: -4 to 140F (-20 to 60 C)
• Media compatibility: Dry, oil-free air, N2
• Sensor Type: MEMS silicon piezoresistive; precision calibrated
• Accuracy: 1.0%
• Zero Tolerance: Included in accuracy specification
• Span Tolerance (3): 1.00%
• Zero Drift (1 year) Auto-zero input: 0.004 WC/year max. 0.4% for units >0.5"w.c.
• Thermal Shift (Zero and Span): 0.02% FSO/ C (0.01%FSO/ F) measured from 22 C (72 F)
• Overpressure: up to 5" models: 41.5"w.c.; 10" models: 133"w.c.; 25" models: 332"w.c.
• Max Static Line Pressure: up to 5" models: 41.5"w.c.; 10" models: 133"w.c.; 25" models: 332"w.c.
• Burst Pressure: up to 5" models: 83"w.c.; 10" models: 166"w.c.; 25" models: 415"w.c.
• Position Sensitivity: Non-position sensitive
• Response Rate: 8 seconds (4)
• Compliance: CE, RoHS
• Enclosure Flammability: UL94 5VB
• Environmental: NEMA 1
• Range: 5 in WC
• Type: Transmitter
• Output: 4 - 20 mA
• Display: LCD
• Supply Voltage (Nominal): 24 VDC
• Direction: Uni-Directional,Bi-Directional
• Mount: Surface
• Sensor performance: 0.25% BFSL (Best fit straight line)
• Auto-zero input: Push-button and contact closure
• Output Signal: 4-20 mA, 0-5 VDC, or 0-10 VDC
• Pressure Type: Differential
• Pressure Ranges: 0 to 5 Inch
• Media: Dry
• LCD Display: LCD Display
• Zero Function: Yes
• Range Setting: Adjustable
• Communication: None
• Series: P5 Series
• Brand: SENVA
• Model: P5-0500-1LX
• MPN: P5-0500-1LX
• Pressure Sensor Type: Differential
• Sensor Housing: None
• Sensor: Pressure
