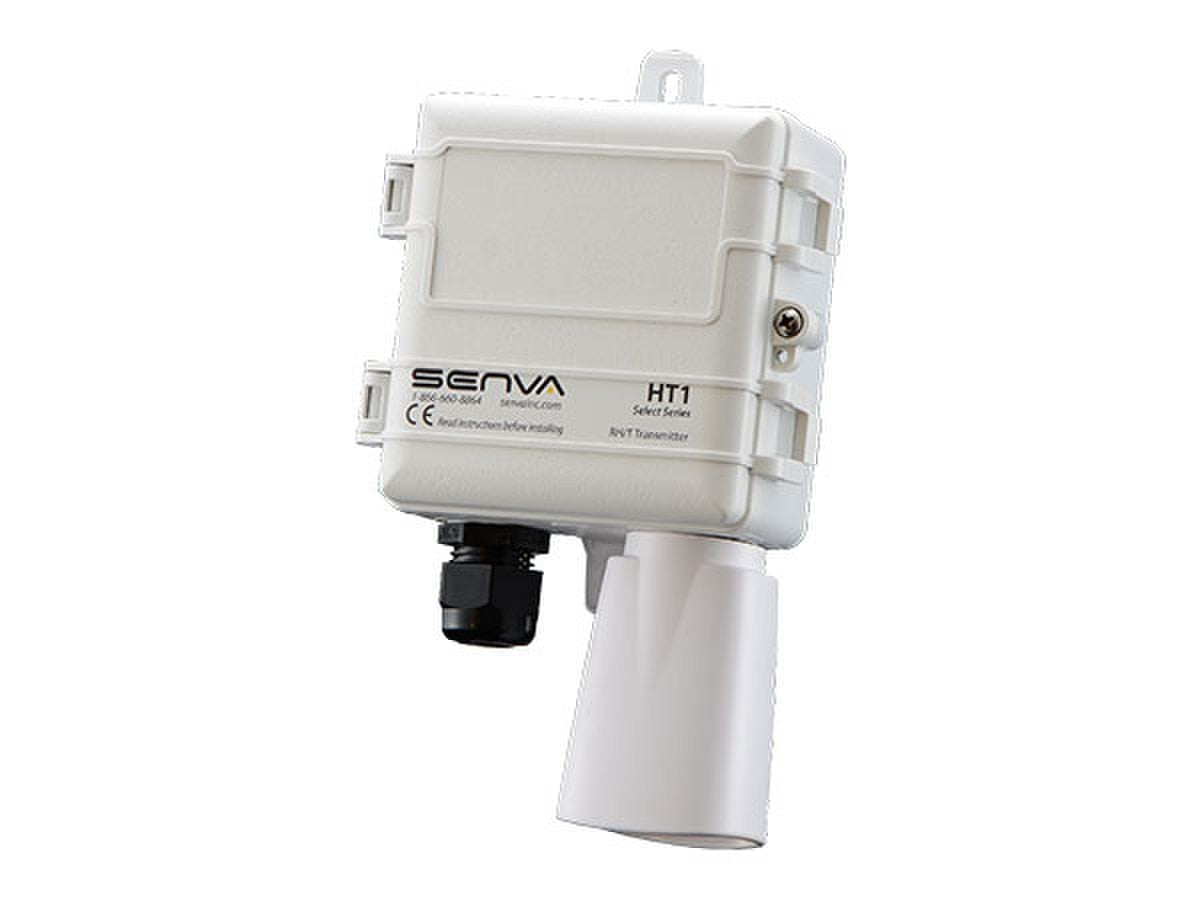

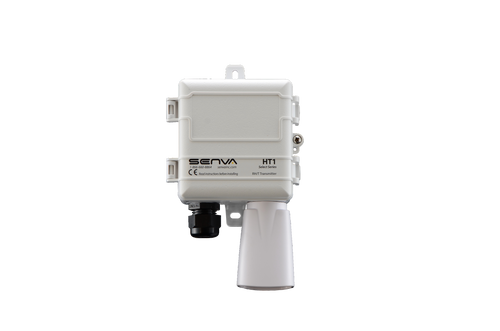

Senva HT1O-3EUD Outside Air Humidity and Temperature Sensor 3% 10K Type 2

Product Description

The Senva HT10 Series, including the HT1O-3EUD, is designed for exterior building mounting to measure outside air RH. It combines stability with reliable operation, offering 3% RH accuracy. Features include a standard LCD, gasketed lid, and field-replaceable elements for easy installation and service. Ideal for economizer control, psychrometric calculations, and wash-down applications.

• Versatile
• Easy to maintain
• Superior RH sensing

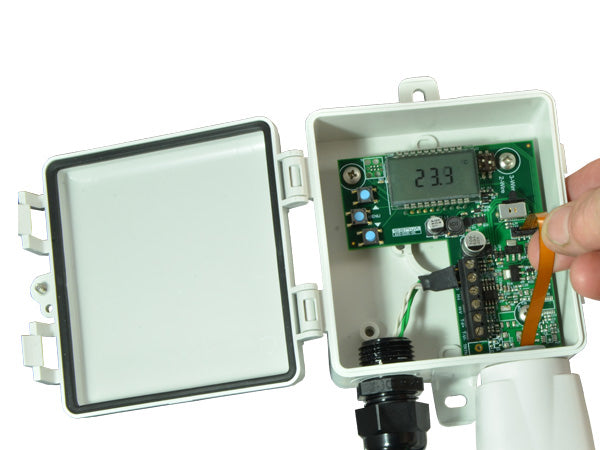

• Field replaceable element
• LCD with menu
• NIST traceable

Product Highlights

The Senva HT1O-3EUD is an outdoor humidity and temperature sensor with 3% RH accuracy, selectable outputs, and a 10k Type II thermistor. It features an LCD display and a field-replaceable element.

Product Information

Standard Information

• Brand: SENVA
• Manufacturer Part Number: HT1O-3EUD
• Country of Origin: USA

Technical Specifications

• Accuracy: 3%
• Housing Material: Poly
• Sensor Element: 10K Type 2 Thermistor
• Output: 4 - 20 mA,0-5/0-10 VDC
• Display: LCD
• Enclosure Rating: NEMA 1,NEMA 3R
• Power Requirements: 24 VAC,24 VDC
• Application: Outdoor Air Humidity,Economizer Control,Psychrometric Calculations,Enthalpy,Dew Point,Wash Down Applications
• Mount: OSA
• Power Supply: 3-wire voltage mode (0-5/10V): 12-30VDC/24VAC (1), 15mA max. 2-wire current mode (4-20mA): 12-30VDC, 30mA max.
• Outputs: RH and Temperature (option): 3-wire 0-5/10V (4) or 3-wire or 2-wire 4-20mA (Selectable)
• Output scaling RH: 0-100% RH
• Temperature: 32-122
