Product Description

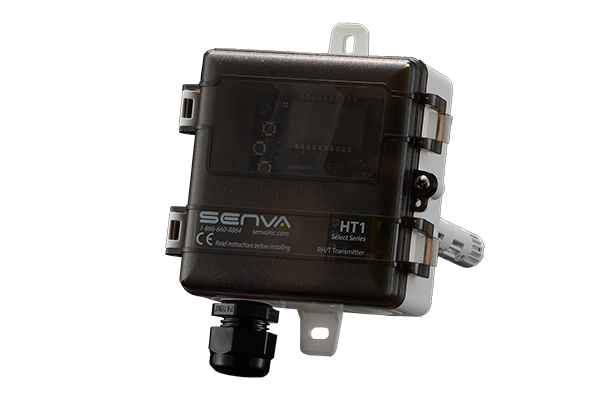

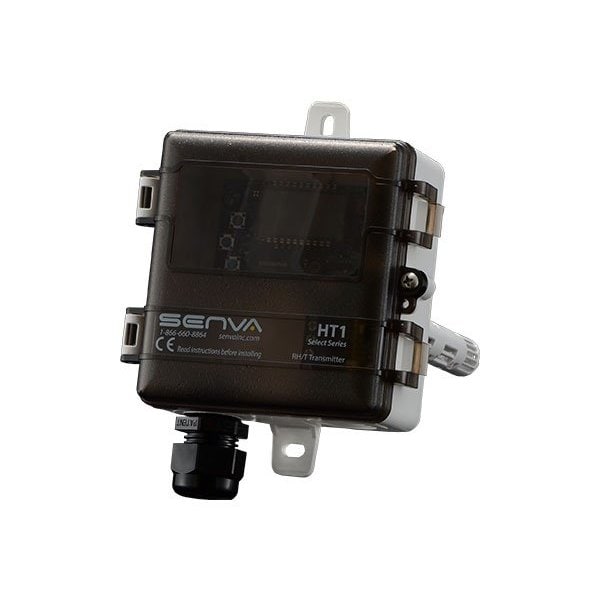

The SENVA HT1D-2DUD is a duct humidity and temperature transmitter with 1.5 2.00% accuracy and a 6.80" probe. It features a 1K RTD 385 sensor element and field-selectable outputs. Designed for HVAC applications, it facilitates compliance with ASHRAE 62.1 standards for air quality. Ideal for maintaining healthy air quality in critical environments.
- Versatile
- Easy to maintain
- Superior RH sensing
- Quality
Product Highlights

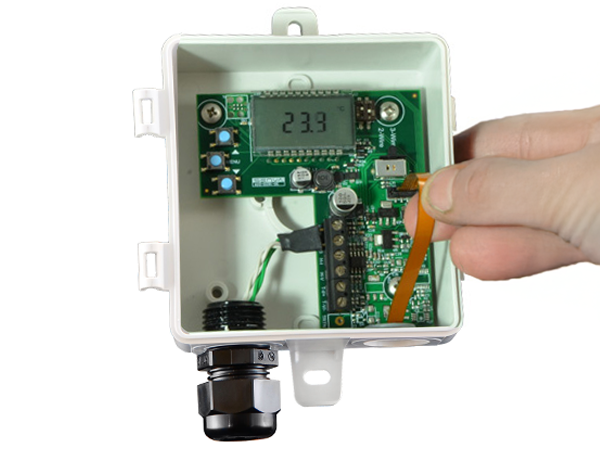

This humidity and temperature transmitter is designed for easy installation and service, ensuring accurate and reliable measurements in diverse HVAC applications.
Product Information
Standard Information
-
Brand: SENVA
-
Manufacturer Part Number: HT1D-2DUD
-
Country of Origin: USA
Technical Specifications
-
Accuracy: 2%
-
Housing Material: Poly
-
Probe Length: 6.80 in
-
Sensor Element: 1K Platinum RTD 385
-
Output: 4 - 20 mA
-
Display: LCD Display
-
Power Requirements: 24 VAC,24 VDC
-
Accessory: DCPA-1.2,DCP-1.5-W,UR
-
Application: Humidification,Dehumidification,Supply,Discharge,Return Air,Economizers,Clean Rooms,Data Centers,Process Control,Schools,Hospitals,Office Buildings
-
Mount: Duct
-
Power Supply: 24VAC, 100mA max./12-30VDC, 50mA max
-

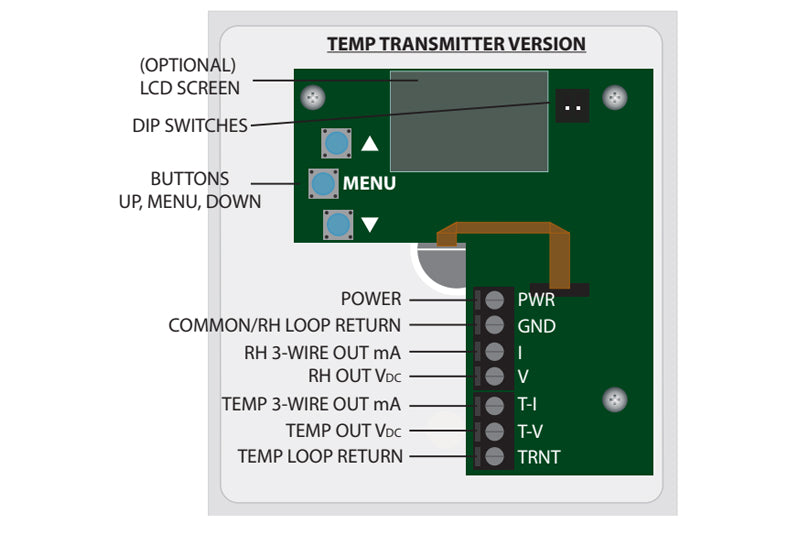

Outputs: 3-wire 0-5/10V (jumper) or 2-wire 4-20mA, selectable
-
RH% Scaling: 0-100% RH
-
Temeprature Scaling: 32-122°F (0-50°C) or -40-140°F (-40 to 60°C) (jumper)
-
Temeprature Element: 1K Platinum RTD
-
Media filter: PBT with water-vapor permeable membrane
-
Relative Humidity Accuracy: 2% models, ±2% max 0 to 100%RH; ±1.5% typ 0 to 80% RH @25°C
-
Relative Humidity Resolution: 0.01%RH
-
Relative Humidity Hysteresis: ±0.8%RH
-
Relative Humidity Non-Linearity: factory linearized <1%RH
-
Relative Humidity Temperature coefficient: fully compensated by on-board temp sensor
-
Relative Humidity Response time: 8s
-
Relative Humidity Output update rate: 0.5s
-
Relative Humidity Operating range: 0 to 100%RH (non-condensing)
-
Relative Humidity Long term drift: <0.25%RH per year
-
Relative Humidity Operating conditions: 41 to 140°F (5 to 60°C) @20 to 80% RH
-
Temperature Accuracy: 2% models, <±0.25°C; 0.1°C typ @ 25° C
-
Temperature Resolution: 0.01° C
-
Temperature Repeatability: 0.4° C
-
Temperature Response time: 8s
-
Temperature Output update rate: 0.5s
-
Temperature Operating range: -40 to 140°F (-40 to 60°C)
-
Enclosure Materials: ABS/Polycarbonate
-

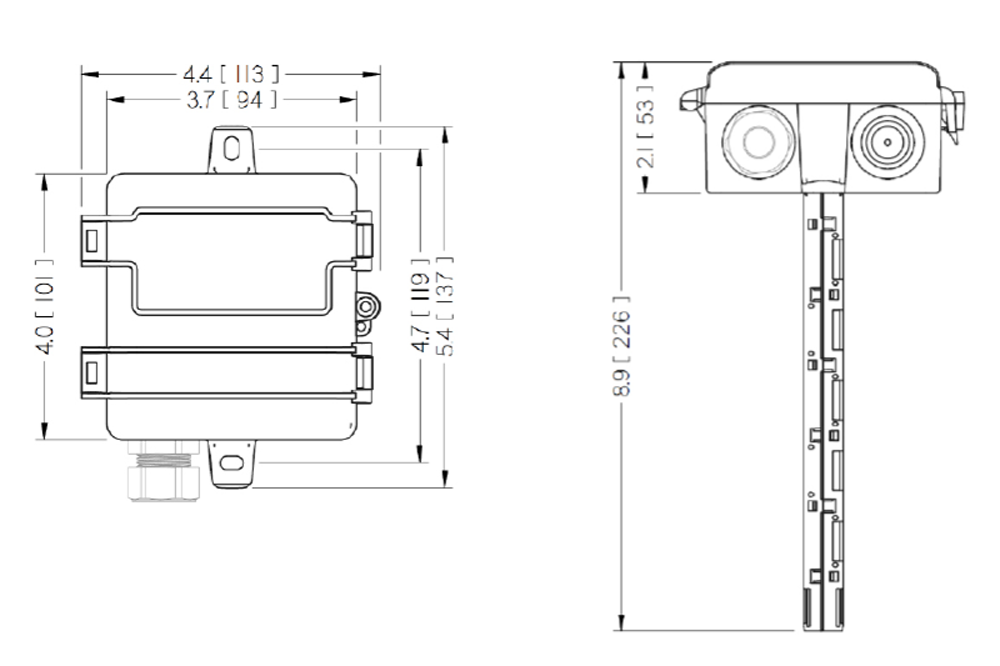

Dimensions: 4.0"h x 4.4"w x 2.1"d (+6.8" probe)
-
Sensor Type: Duct
-
Enclosure: Plastic Box Enclosure
-
Humidity Element: 2%
-
Output Signal: 4-20mA, 0-5 VDC, or 0-10 VDC
-
VOC Element: None
-
CO2 Element: None
-
Supported Protocols: None
-
Thermistor/RTD: Optional See ordering table
-
Accuracy (2% models): <±0.25°C; 0.1°C typ @ 25°C
-
Accuracy (3% models): <±0.3°C; 0.25°C typ @ 25°C
-
Resolution: 0.01% RH
-
Hysteresis: ± 0.8% RH
-
Non-Linearity: Factory linearized < 1% RH
-
Temperature coefficient: Fully compensated by the onboard sensor
-
Response time (2): 2s
-
Operating range: -40 to 140o F (-40 to 60oC)
-
Longterm drift: < 0.25% RH per year
-
Normal Operating Conditions (3): 41 to 140°F (5° C to 60°C) @ 20% to 80% RH
-
Repeatability: 0.08°C
-
Output date rate: 0.5s
-
Materials: ABS/Polycarbonate
-
Unit Temp Rating: -40 to 158o F (-40 to 70o F)
-
Enclosure Rating: Nema 1; Add drain holes to enclosure bottom to achieve Nema 3R rating
-
Agency Compiance: CE, RoHS
