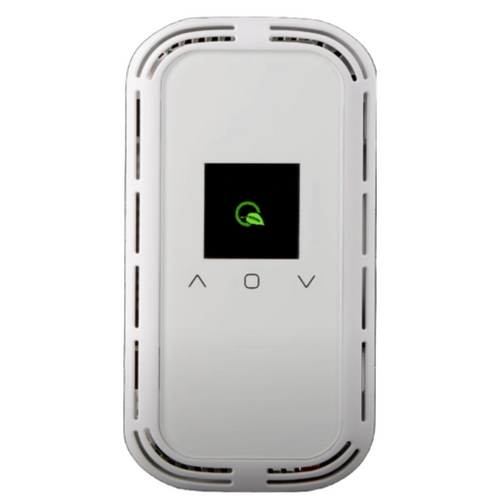

Senva AQ2W-AC2AAED Totalsense Iaq Sensor, Wall, Anlg, Co2, Rh 10k T2, Lcd

Product Description

The SENVA AQ2W-AC2AAED is a newly designed AQ2 Pro Series air quality sensor. It features color OLED and capacitive touch buttons for simple setup. This versatile sensor is available with analog capability and a standard programmable setpoint relay. It measures CO2, RH, and temperature.

• Reduce installation costs with multiple sensors in a standard size enclosure
• Color display and Air Quality Ring for tenant assurance (programmable)
• Industry-leading temperature and barometric pressure compensated CO2 sensing

Product Highlights

The AQ2W-AC2AAED offers high accuracy with a slim, easy-to-install design, making it suitable for various air quality monitoring applications.

Product Information

Standard Information

• Brand: SENVA
• Manufacturer Part Number: AQ2W-AC2AAED
• Country of Origin: USA

Technical Specifications

• Display: No
• Measurement Range: 0 - 2,000 ppm
• Application: Industrial,Mining,Chemical Plants,Oil & Gas,Medical,Waste Management,Food & Beverage
• Output Signal: 4-20mA, 0-5 VDC, or 0-10 VDC
• Power Supply: 12-30VDC/24VAC(1), 100mA max.
• Interface: OLED (optional) 0.5" Organic LED Display, 300 ppi, color, Air Quality Ring Color changing (red/yellow/green) LED ring with 12 LED
• Analog Outputs (Analog version only): Quantity: Up to 3 outputs Source: CO2, RH%, Temp, Temp slider, Dew Point (selectable) Scale: 0-5V, 0-10V, 4-20mA (switch selectable, programmable per output)
• Relay (standard except for PM models): Type: Solid-state output, 1A @ 30VAC/DC, N.O. Source: CO2 setpoint, RH setpoint, Temp setpoint, off (selectable) Polarity: NO/NC (selectable)
• Operating Environment: Temperature: 32 to 122F (0 to 50C) Humidity: 0-95% non-condensing
• Enclosure Material: ABS Plastic
• Compliance: Agency CE, RoHS
• Sensor Type: Wall Mount
• CO2 Element: Yes
• Humidity Element: Yes
• VOC Element: None
• Temperature Element: 10K Type II
• Supported Protocols: None
