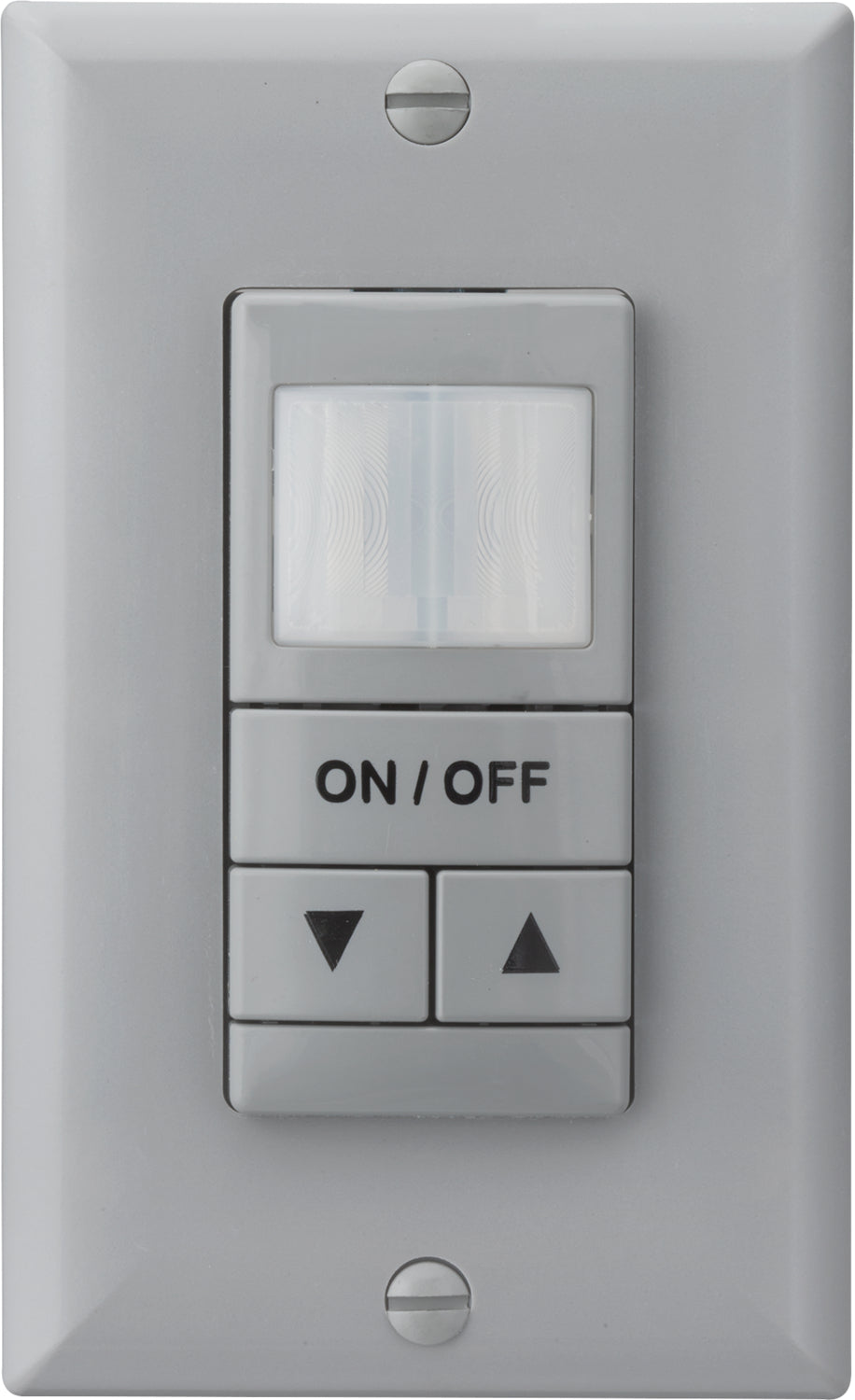

Sensor Switch WSXPDTDGY Wall Switch Occupancy Sensor 120 to 277 VAC Replacement MPN

Product Description

The Sensor Switch WSXPDTDGY is a wall switch occupancy sensor suitable for both commercial and residential use. It operates within a voltage range of 120 to 277 VAC and is designed to manage lighting automatically. This sensor supports a coverage area of up to six hundred twenty-five square feet and utilizes PIR and microphonics detection technologies.

• Coverage area of six hundred twenty-five square feet
• Compatible with multiple lamp types including incandescent
• Automatic control output for efficient energy use

Product Highlights

Ideal for small enclosed spaces, this sensor can function with or without a neutral connection, allowing for flexible installation. It is equipped with a soft-click button and provides detection up to twenty feet.

Product Information

Standard Information

• Manufacturer: Acuity Brands
• Brand: Sensor Switch

Technical Specifications

• Power Rating: Eight hundred to twelve hundred W
• Voltage Rating: 120 to 277 VAC
• Response Frequency: 50/60 Hz
• Temperature Rating: 32 to 140 degrees F
• Sensor Type: PIR/Microphonics
• Enclosure Type: NEMA WD7
• Mounting Type: Surface
• Dimensions: One point sixty-eight inches W x One point sixty-three inches D x Two point seventy-four inches H
