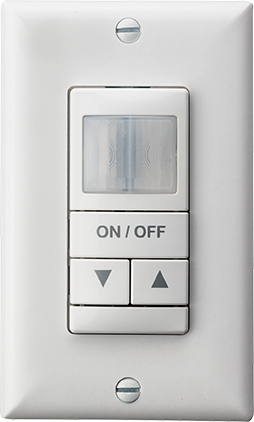

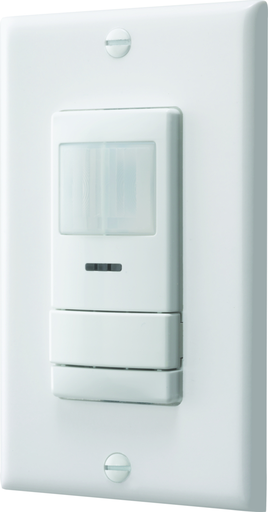

Sensor Switch WSX PDT D WH Wallstation Wall Switch Sensor, 120 to 277 VAC, Passive Infrared/Microphonics Dual Technology Sensor, 20 ft Coverage, 180 deg

Product Description

The SensorSwitch WSX PDT D WH is a wall switch sensor designed for effective occupancy control. This passive dual technology sensor operates at 120 to 277 VAC and features a sensing range of up to 20 feet with a 180-degree viewing angle. The installation is simple, making it suitable for both commercial and residential applications, including offices, restrooms, and storage areas.

• Passive Infrared/Microphonics dual technology for accurate detection
• Automatic On control output for energy-efficient operation
• Wall mount design for easy installation and deployment

Product Highlights

This sensor offers reliable and precise lighting control, optimizing energy usage by automatically adjusting based on occupancy.

Product Information

Standard Information

• Catalog Number: WSX PDT D WH
• Manufacturer: Acuity Brands

Technical Specifications

• Power Rating: 1/4 hp
• Voltage Rating: 120 to 277 VAC
• Response Frequency: 50/60 Hz
• Material: Plastic

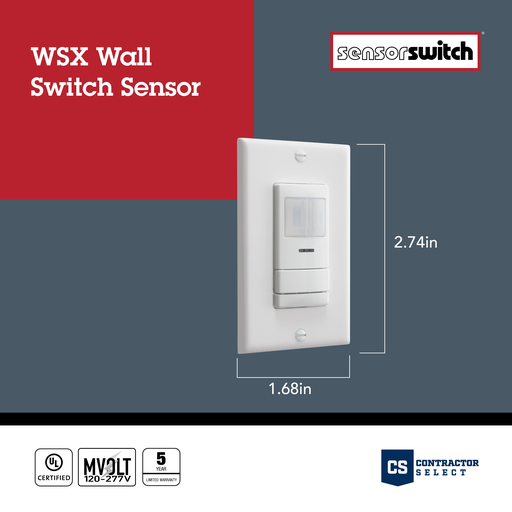

• Dimensions: 2.74 inches H x 1.68 inches W x 1.63 inches D
• Sensing Range: 180 degrees
• Environmental Conditions: Indoor
• Applications: Education, Government, Healthcare, Hospitality, Offices, Retail, Warehouses
