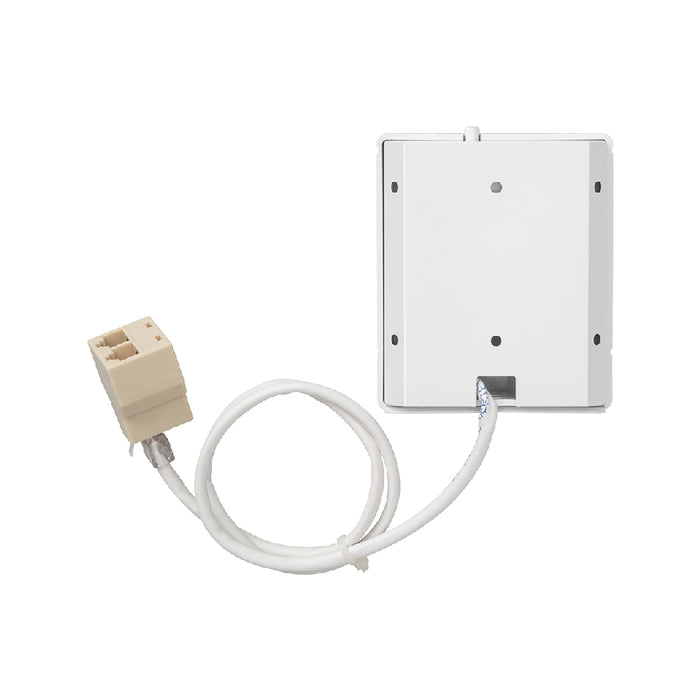

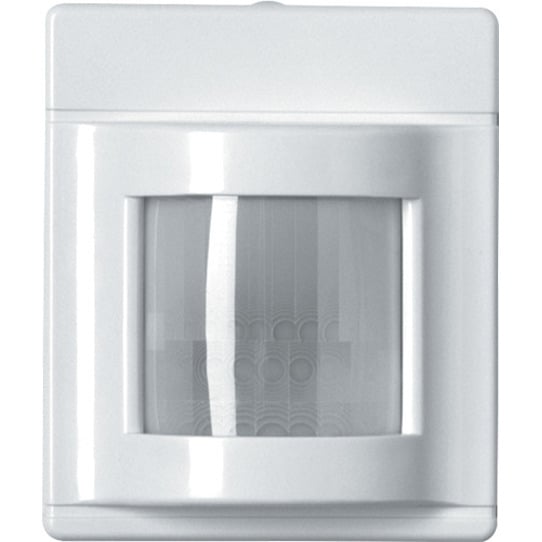

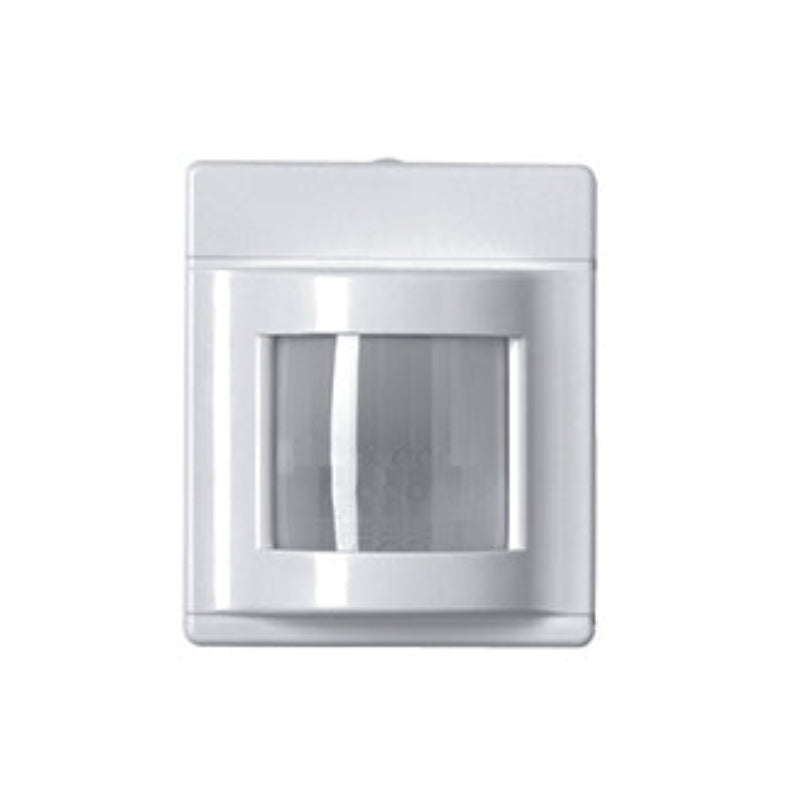

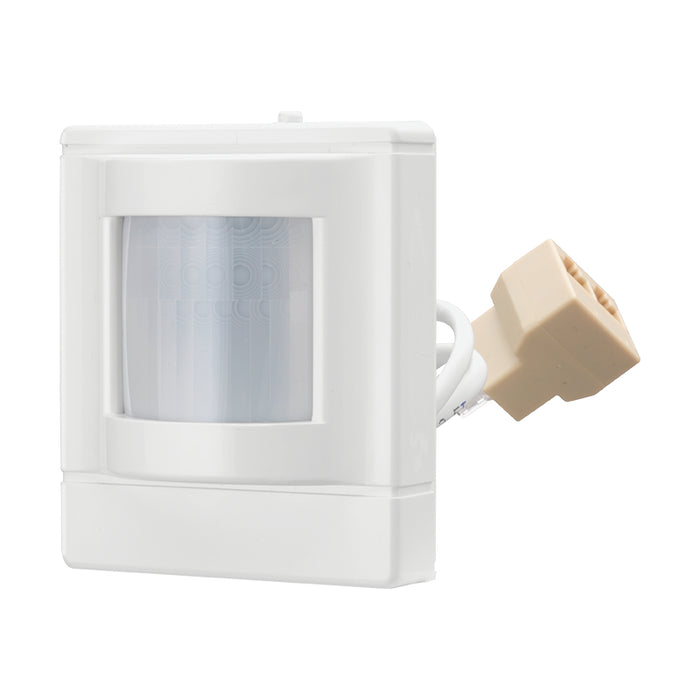

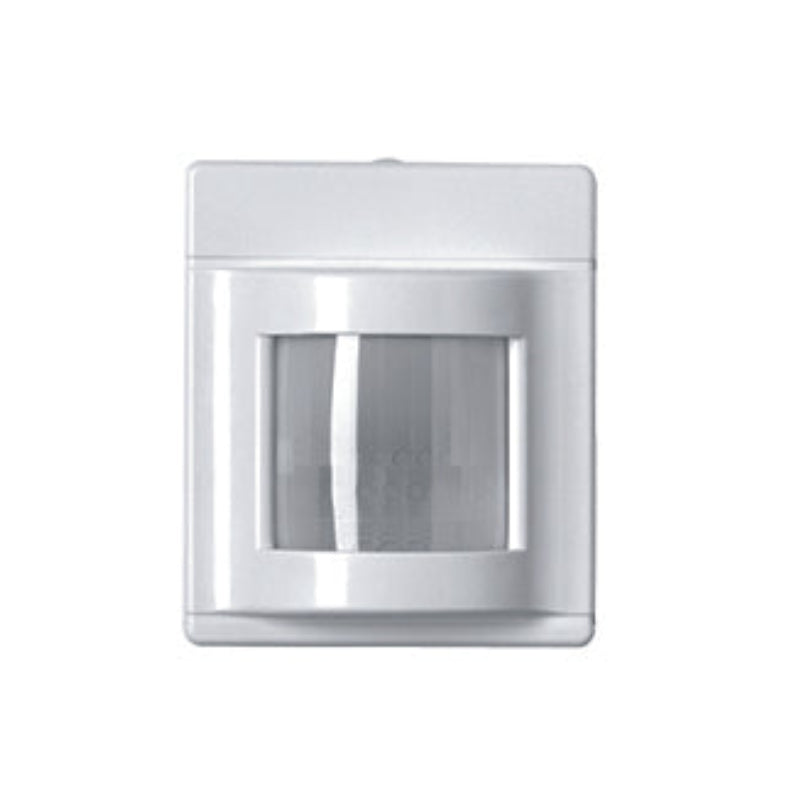

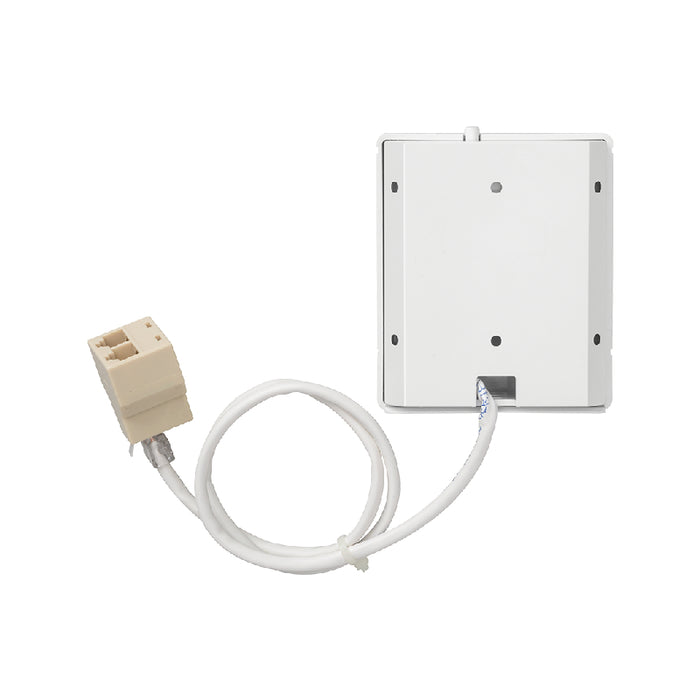

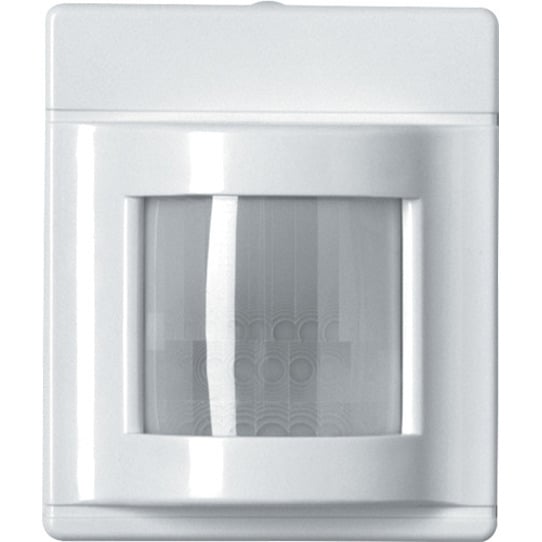

Sensor Switch HW13 Hallway, Wall, Low Volt, PIR Sensor

Product Description

The SENSOR SWITCH HW13 sensor provides long narrow PIR detection for control of hallway lighting. Typically mounted at either end of a long corridor, this low voltage sensor detects occupants entering the hallway up to 130 ft away. Detection at these distances is for entrances at right angles to the beam pattern. The HW13 can also be used with other low voltage sensors to adequately view a space. It is best mounted at 7 ft.

• PIR Occupancy Detection
• Coverage up to 130 Linear Feet
• Communicates with other Sensors

Product Highlights

Designed for hallway lighting control, this low voltage PIR occupancy sensor offers long narrow detection up to 130 feet.

Product Information

Standard Information

• Brand: SENSOR SWITCH
• Manufacturer Part Number: HW13
• Country of Origin: Mexico

Technical Specifications

• Control Platform: Sensor Switch Standalone
• Control Device Type: Daylight Sensor
• Mounting Type: Wall Mount
• Product Type: Occupancy Sensor
• Color: White
• Finish: Gloss
• Input Voltage: Low Voltage
• Environmental Conditions: High Humidity
• Series: HW13
• Application: Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Retail, Sports and Recreation, Warehouses
• Power Source: Corded Electric
• Maximum Range: 130 Feet
• Sensing Range: 100 degrees
• Material: Plastic
• Certifications: cUL, UL
