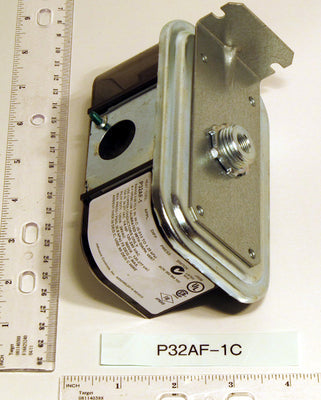

Johnson Controls P32AF-1C Differential Pressure Switch 0.05 to 5.0 WC

Product Description

The Johnson Controls P32AF-1C is a differential pressure switch designed for pressure-sensitive systems. It features an adjustable setpoint range from 0.05 to 5.0 inches of water column. The switch operates with SPDT (Single Pole Double Throw) contacts and can handle a maximum pressure of 1 psig. Ideal for HVAC applications, it provides reliable performance in various environments.

• Pressure range: 0.05 to 5.0 inches WC
• SPDT contacts for versatile applications
• Compact design for easy installation

Product Highlights

This pressure switch is commonly used in HVAC systems to monitor air flow and control equipment accordingly, ensuring efficient operation and safety.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: P32AF-1C

Technical Specifications

• Pressure Range: 0.05 to 5.0 inches WC
• Max Pressure: 1 psig
• Contacts: SPDT
• Ambient Operating Temperature: -40 to 165 degrees F
• Diaphragm Material: Buna-N
• Mounting Options: Direct or with bracket
