Selkirk Corporation 206495 Complete Thru-wall Kit 6 in

Product Description

The SELKIRK CORPORATION 206495 is a complete thru-wall kit for 6-inch single-wall B-vent chimney installations. It provides all the core components needed to route a venting system through an exterior wall in a single packaged kit. Licensed HVAC technicians and plumbers rely on this type of assembly to ensure code-compliant, properly supported chimney penetrations in residential gas appliance venting. The kit weighs 37.81 pounds and is sold as a single unit, making it straightforward to order and stage for a job.

This kit is suited for residential gas appliance venting applications where a chimney connector must pass through an exterior wall before rising vertically. Typical installations include gas furnaces, water heaters, and boilers that use B-vent or single-wall metal connector pipe. The included components cover the critical points of wall penetration, pipe transition, and exterior finishing, reducing the need to source parts individually.

Key Features

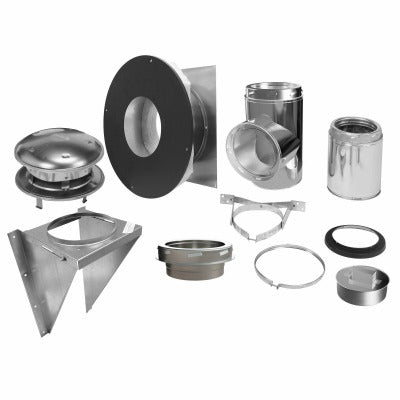

• Complete kit reduces field sourcing — includes Round Top, Wall Band, Insulated Tee, Wall Support Kit, Insulated Wall Thimble, 12-inch Pipe Section, and Smoke Pipe Adapter Finish Collar
• 6-inch diameter fits standard residential chimney connector sizing
• Insulated tee and insulated wall thimble help maintain proper draft and meet clearance-to-combustibles requirements
• Wall support kit provides structural anchoring of the venting assembly at the wall penetration
• Finish collar provides a clean, professional appearance at the exterior wall surface
• Sold as a single unit (EA) for straightforward project ordering

Compatibility

Designed as an OEM-style replacement and new-installation kit for 6-inch residential B-vent and single-wall metal chimney connector systems.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified mechanical contractor in accordance with NFPA 54 and applicable local mechanical codes. Shut down and allow the gas appliance and any existing venting to cool completely before beginning work. Ensure wall penetration dimensions and clearance-to-combustibles distances meet the appliance manufacturer requirements and local code before securing the wall thimble and support components. Do not substitute components from other kit assemblies, as the parts are sized and rated to work together.

Technical Specifications

• Diameter: 6 inches
• Included Components: Round Top, Wall Band, Insulated Tee, Wall Support Kit, Insulated Wall Thimble, 12-inch Pipe Section, Smoke Pipe Adapter Finish Collar
• Weight: 37.81 pounds
• Package Quantity: 1 EA

Standard Information

• Brand: SELKIRK CORPORATION
• Manufacturer Part Number: 206495
