SELKIRK Selkirk 4RV-EL90 104230 4 in 90 Degree Adjustable Elbow
SELKIRK Selkirk 4RV-EL90 104230 4 in 90 Degree Adjustable Elbow
SELKIRK Selkirk 4RV-EL90 104230 4 in 90 Degree Adjustable Elbow
SELKIRK Selkirk 4RV-EL90 104230 4 in 90 Degree Adjustable Elbow

Selkirk 4RV-EL90 104230 4 in 90 Degree Adjustable Elbow

Brand: SELKIRK
SKU: 4RV-EL90
Availability: In Stock

Ships same day if ordered by 12 pm
$70.74
$70.74
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

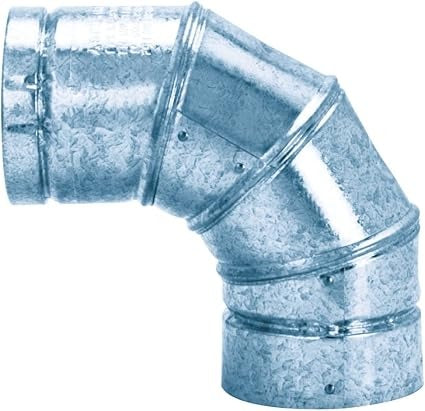

Selkirk 4RV-EL90 is a 4-inch, 90 degree adjustable RV Type B gas vent elbow used to create offsets and orient vent pipe between vertical and horizontal runs. The four-piece, 4-gore elbow has an aluminum inner liner and a 28 gauge galvanized steel outer shell with die-formed ends and a snap-together lock system. It is UL listed for use on approved residential and light commercial gas appliances.

  • Four-piece, 90 degree adjustable elbow for pipe offsets and orientation
  • 28 gauge galvanized outer with aluminum inner liner and internal spacing beads
  • Type B gas vent construction, UL listed; rated for high-temperature venting

Product Highlights

4 in RV Type B gas vent elbow; four-piece adjustable; UL listed

Product Information

Standard Information

  • Brand: SELKIRK
  • Manufacturer Part Number: 4RV-EL90
  • Country of Origin: United States
Technical Specifications
Brand
Selkirk
MPN
4RV-EL90
Catalog Number
104230
Part Number
104230
Model
4RV-EL90
Type
RV Type B gas vent adjustable elbow
Configuration
Four-piece (4-gore) adjustable elbow
Angle
90 Degree
Size (Inside Diameter)
4 in
Approximate Outside Diameter
Approximately 1/2 in larger than inside diameter (approx. 4.5 in)
Outer Material
Galvanized steel
Inner Liner
Aluminum
Material Thickness
28 gauge (outer)
Vent Type
Type B
Application
For use on approved gas appliances in residential and light commercial applications
UL Listed
Yes
Standards
UL 441; NFPA 54/211
Maximum Temperature
500 F
Connection
Snap-together non-positional lock system
Item Dimensions
12.8 x 9.9 x 5.2 inches
Item Weight
2.9 pounds
UPC
053713125805
Country of Origin
United States
Connector Type
Elbow
