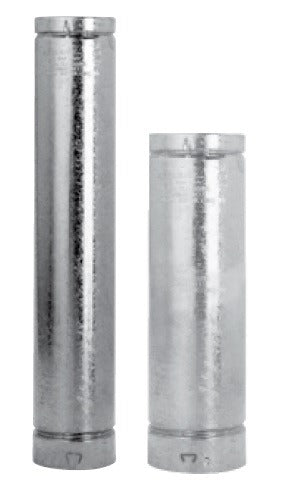

Selkirk 4M12 Type B Gas Vent Pipe 4x12 Inches

Product Description

The SELKIRK 4M12 is a double-wall Type B gas vent pipe section measuring 4 inches in diameter and 12 inches in length. It is designed to safely vent combustion gases from gas-fired appliances to the outside atmosphere. The inner wall is constructed from aluminum alloy at 0.012 inches thick, while the outer wall uses G90 galvanized steel at 0.018 inches thick. This double-wall construction maintains proper flue gas temperature and reduces heat transfer to surrounding combustible materials. The 4M12 includes a lock tab non-positional locking system for fast, secure field assembly. Licensed HVAC technicians, plumbers, and gas fitters install this component as part of a listed Type B vent system.

The SELKIRK 4M12 is suited for residential, commercial, and industrial installations. Typical applications include natural gas and propane appliances such as furnaces, water heaters, and stoves. As a Type B vent component, it is intended for use with listed gas appliances that produce flue gases at temperatures within the Type B vent rating. The RV series design integrates with other compatible Type B vent system components for complete venting runs from appliance to termination.

Key Features

• Double-wall construction: aluminum alloy inner wall and G90 galvanized steel outer wall
• 4-inch diameter x 12-inch length for straight vent runs
• Inner wall thickness: 0.012 inches; outer wall thickness: 0.018 inches
• Lock tab non-positional locking system for tool-free, secure joint assembly
• Listed to UL 441, ULC S605, and compliant with NFPA 54/211
• Suitable for residential, commercial, and industrial gas appliance venting

Compatibility

Designed for use with Type B gas vent pipe systems. Compatible applications include fired appliances, water heaters, furnaces, and stoves in residential, commercial, and industrial settings. Part of the SELKIRK RV series Type B vent system.

Installation Notes

Installation must be performed by a licensed HVAC technician, plumber, or gas fitter in accordance with NFPA 54, NFPA 211, and local mechanical codes. Shut off all gas supply and allow appliances to cool completely before servicing or modifying any vent system. Maintain required clearances to combustibles as specified by the vent system listing and local authority having jurisdiction. Do not mix components from unlisted or incompatible vent system manufacturers within the same venting run.
