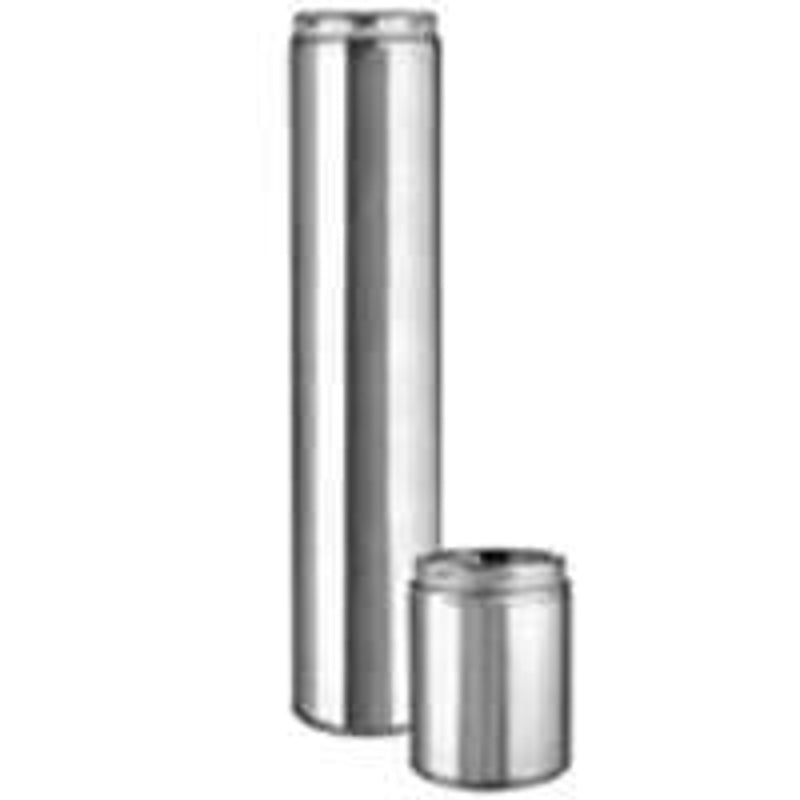

Selkirk 208148u Chimney Pipe 8 Inches Id 10 Inches Od 48 Inches L Stainless Steel with Twist-lock Coupler

Product Description

The Selkirk 208148u is a stainless steel chimney pipe section designed for residential venting applications involving wood-burning stoves, oil furnaces, and natural or LP gas appliances. This pipe measures 8 inches in inside diameter, 10 inches in outside diameter, and 48 inches in length, making it a full 4-foot section suited for extending a chimney system through walls, ceilings, or open vertical runs. Constructed from stainless steel with a material gauge of 1, it is built to withstand continuous high-heat environments with a temperature rating of 1000 degrees F. The pipe ships with a Twist-Lock Coupler with Locking Band included, which allows for secure, tool-friendly connections between sections during installation. The Selkirk Chimney System, commonly known as SCS, was developed specifically for modern high-efficiency airtight wood stoves that demand reliable draft performance without pressurized venting. This system operates on gravity-based natural draft and is rated for non-positive internal pressure venting only. For appliances such as oil furnaces equipped with power burners, this pipe is suitable as long as the appliance maintains neutral or negative draft at its outlet. HVAC technicians, chimney installers, and heating contractors rely on this type of factory-built chimney pipe for code-compliant residential installations. The stainless steel construction resists corrosion from flue gases and condensation that can occur in high-efficiency heating cycles. At 31 pounds, this section is manageable for single-person handling during installation. The nominal width of 8 inches is a common size in residential chimney systems serving wood stoves and multi-fuel heating units, making replacement sections and compatible components straightforward to source.

• 8 inches inside diameter and 10 inches outside diameter chimney pipe section, 48 inches in length
• Stainless steel construction rated to 1000 degrees F for durable, corrosion-resistant performance
• Includes Twist-Lock Coupler with Locking Band for secure, fast section-to-section connection

Product Highlights

The Selkirk 208148u delivers a full 48-inch stainless steel chimney pipe section with an integrated Twist-Lock Coupler, offering reliable natural-draft venting for residential wood, oil, and gas heating appliances at a temperature rating of 1000 degrees F.

Product Information

Standard Information

• Brand: SELKIRK
• Manufacturer Part Number: 208148u

Technical Specifications

• Inside Diameter: 8 inches
• Outside Diameter: 10 inches
• Length: 48 inches
• Height: 53 inches
• Nominal Width: 8 inches
• Material: Stainless Steel
• Material Gauge: 1
• Temperature Rating: 1000 degrees F
• Includes: Twist-Lock Coupler with Locking Band
• Weight: 31 pounds
• Width: 12.25 inches
• UNSPSC Code: 45.451.451
