Selkirk 208036u Chimney Pipe 10 Inch Od 36 Inch Length Stainless Steel

Product Description

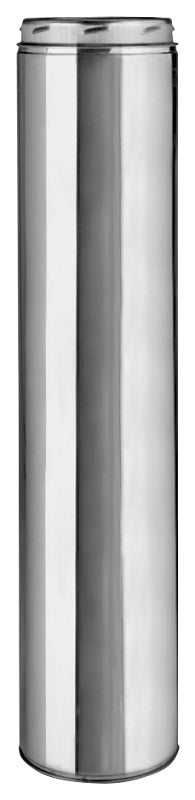

The Selkirk 208036u is a stainless steel chimney pipe section designed for residential and light commercial venting applications. It measures 10 inches in outside diameter and 36 inches in length, making it a standard pipe section within the Selkirk Chimney System (SCS) lineup. This pipe is built for gravity-driven, natural draft venting and is rated for non-positive internal pressure systems only. It is well suited for venting wood-burning stoves, fireplaces, oil furnaces, and natural or LP gas appliances. HVAC technicians and chimney installers rely on this type of pipe for reliable, code-compliant flue connections in both new construction and retrofit projects. The inside diameter measures 8 inches, and the outside diameter reaches 10 inches, accommodating standard chimney system fittings and connectors. The pipe carries a temperature rating of 1000 degrees Fahrenheit, providing a solid safety margin for wood-burning and fossil fuel applications. Constructed from stainless steel, this chimney pipe resists corrosion, high heat, and the acidic condensate that can develop in flue gas environments. Stainless steel is the preferred material for chimney pipe in high-efficiency appliance installations where flue temperatures can fluctuate and condensation is a concern. The pipe includes a Twist-Lock Coupler with a Locking Band, enabling fast and secure field assembly without the need for special tools. This locking connection method reduces installation time and helps maintain a tight, gas-tight seal at each joint. The SCS design is specifically engineered for modern airtight wood stoves and other high-efficiency heating appliances. For oil furnaces and similar power-burner appliances, the system is usable when the appliance operates with neutral or negative draft at its flue outlet. Professional installers recognize the SCS line as a dependable solution for residential chimney venting systems that must meet UL listing requirements and local building codes.

• 10 inches outside diameter, 8 inches inside diameter, 36 inches length stainless steel chimney pipe section
• Rated to 1000 degrees Fahrenheit for safe use with wood, oil, natural gas, and LP gas appliances
• Includes Twist-Lock Coupler with Locking Band for fast, secure field assembly

Product Highlights

The Selkirk 208036u delivers a durable, high-temperature stainless steel chimney pipe section with a simple twist-lock connection system. It is a reliable choice for professional installers venting residential heating appliances in natural draft configurations.

Product Information

Standard Information

• Brand: SELKIRK
• Manufacturer Part Number: 208036u

Technical Specifications

• Outside Diameter: 10 inches
• Inside Diameter: 8 inches
• Length: 36 inches
• Height: 37.5 inches
• Width: 10.75 inches
• Material: Stainless Steel
• Temperature Rating: 1000 degrees F
• Weight: 24 pounds
• Includes: Twist-Lock Coupler with Locking Band
• Nominal Width: 8 inches
• UNSPSC Code: 45.451.451
