Selkirk 106134 Gas Vent Wye 6 Inch x 6 Inch x 4 Inch

Product Description

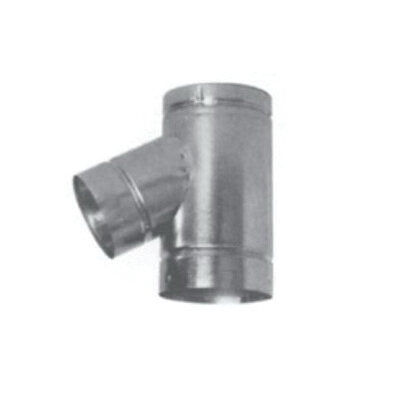

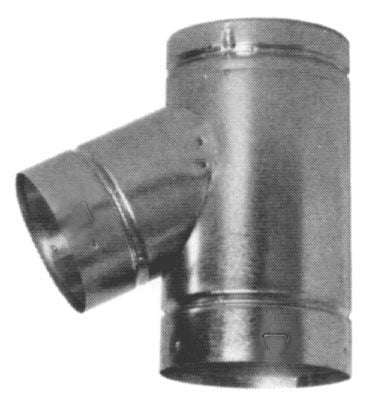

The Selkirk 106134 gas vent wye is a double-wall, fixed, reducing wye designed for type B gas vents. This model has dimensions of six inches by six inches by four inches and an end-to-end dimension of eleven inches. Constructed with an aluminum inner wall and a galvanized steel outer wall, it is suitable for residential, light commercial, and industrial applications.

• Used to transition the system from horizontal to vertical orientation.
• Provides better flue gas flow than a traditional tee.
• Lifetime limited warranty.

Product Highlights

Product Information

Standard Information

• Catalog Number: 106134
• UPC: 053713196829

Technical Specifications

• Material: Aluminum (Inner Wall), Galvanized Steel (Outer Wall)
• Material Thickness: 28 Gauge (Outer Wall)
• Type: Double Wall, Fixed, Reducing
• Size: 6 Inch x 6 Inch x 4 Inch
• End to End Dimension: 11 Inch
• Applicable Standard: UL 441, ULC S-605, NFPA 54/211
• Category: HVAC/R & Fans
