Honeywell Q7130A1006 Interface Module Selectable Voltage Range (4-7, 6-9, or 10.5-13.5 Vdc) Replacement MPN

Product Description

The Honeywell Q7130A1006 Interface Module provides flexibility and versatility for industrial control systems. Featuring selectable voltage ranges, this module is compatible with a variety of electrical configurations, ensuring accurate signal transmission and reliable operation. It integrates seamlessly into existing systems, maximizing efficiency and saving space.

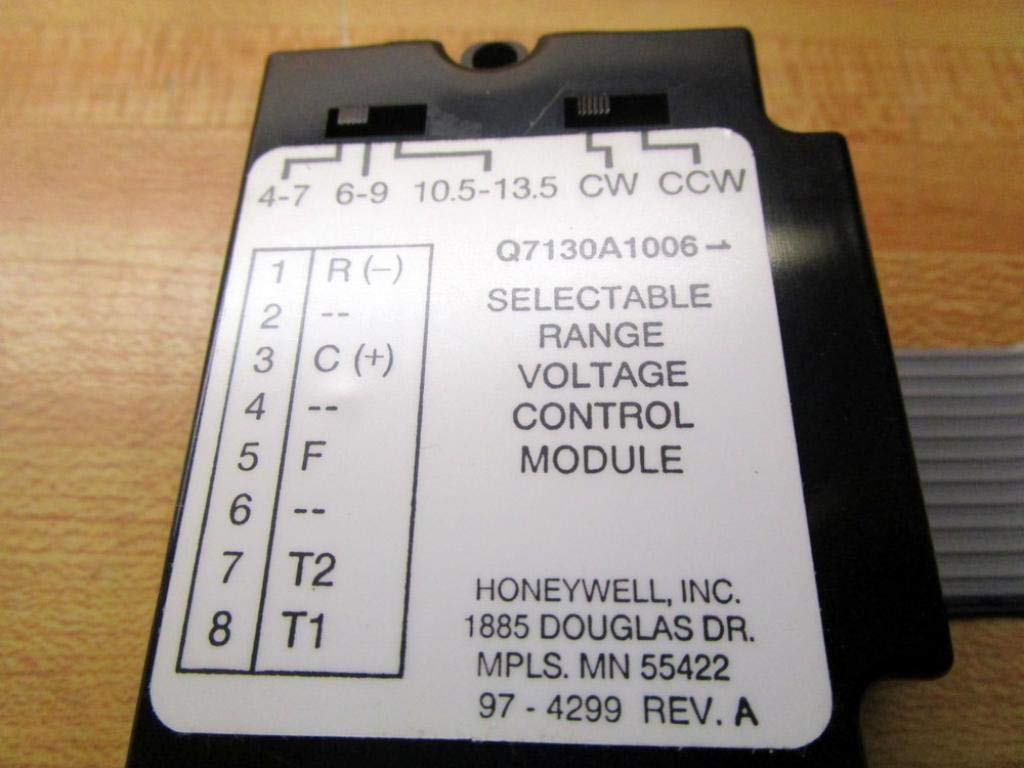

• Selectable voltage ranges of 4 to 7, 6 to 9, or 10.5 to 13.5 Vdc

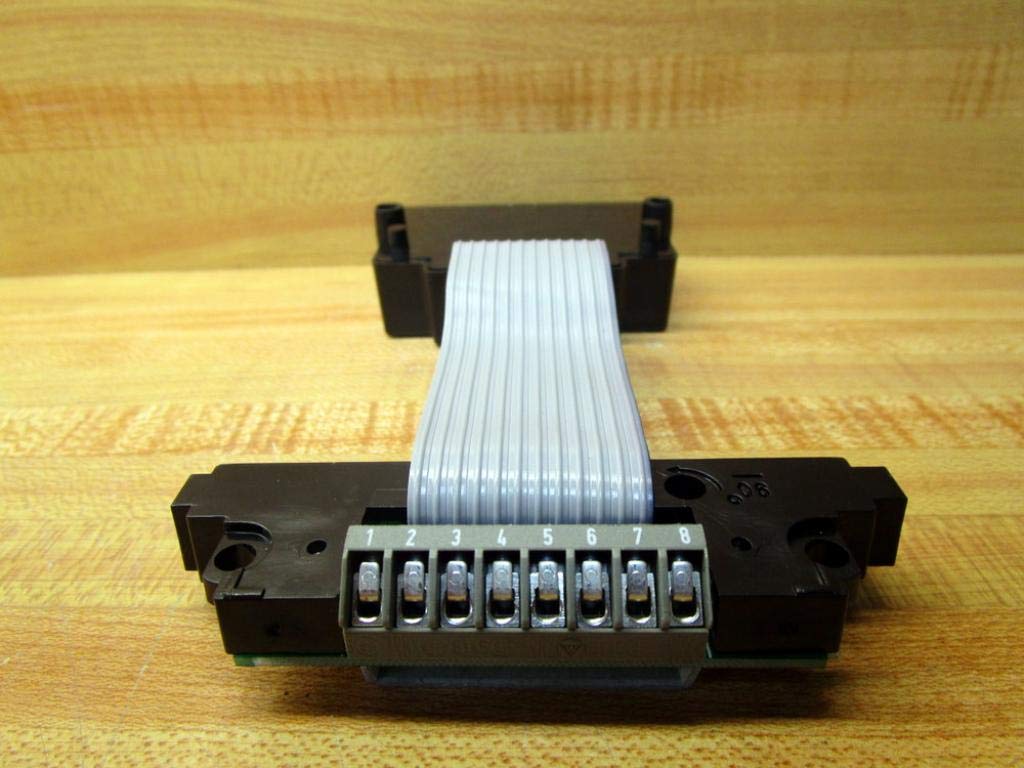

• Quick-connect terminals for easy installation
• Compact design fits inside Modutrol IV Motor junction box

Product Highlights

This interface module from Honeywell, designed for Series 90 Modutrol IV Motors, adapts M91XX to function as M71XX model. It mounts inside the wiring box of any Series 90 Modutrol IV Motor, providing screw terminals for control wiring connections. Protected from weather by the motor's NEMA 3 wiring box, the solid-state circuitry with surface mount components ensures dependability and performance.

Product Information

Standard Information

• Brand: Honeywell
• MPN: Q7130A1006
• Item Weight: 0.25 lbs

Technical Specifications

• Control Signal: Selectable voltage ranges: 4 to 7, 6 to 9, or 10.5 to 13.5 Vdc
• Frequency: 50, 60 Hz
• Power Consumption: 2 VA
• Electrical Connections: Terminal Board
• Mounting: Quick-connects inside Mod Motor
• Temperature Range: -40 F to 150 F
• Used With: Series 90 for conversion to Series 70
