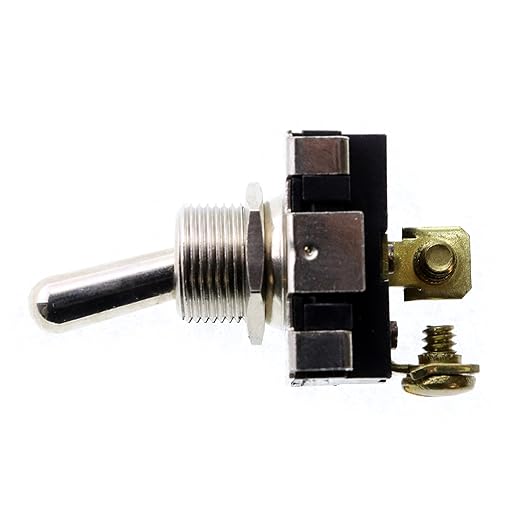

Selecta Switch SS201-1-BG On/Off Toggle Switch, SPST, 6A @ 125V, 3A @ 250V, 1/2 inches

Product Description

The Selecta Switch SS201-1-BG is an On/Off Toggle Switch, SPST, 6A @ 125V, 3A @ 250V, 1/2". This toggle switch is designed for maintained on/off operation. It features screw terminals and a 1/2" diameter mounting hole. Ideal for various electrical applications requiring a reliable switch.

• 6 Amp @ 125 Volts
• 3 Amp @ 250 Volts
• Single Pole Single Throw Toggle Switch

Product Highlights

Heavy duty toggle switch with maintained on/off operation and screw terminals.

Product Information

Standard Information

• Brand: Selecta Switch
• Manufacturer Part Number: SS201-1-BG
• Country of Origin: United States

Technical Specifications

• Terminal: Screw
• Voltage: 125/250V
• Current Rating: 6 Ampere at 125 VAC, 3 Ampere at 250 VAC
• Maximum Current: 6 Amps
• Operation Mode: ON-OFF
• Contact Material: Silver
• Amperage: 3 Amp
• Mounting Hole Size: 0.50 in
• Amperage Rating: 6/3 A
• Actuator: Bat Handle
• Contact Configuration: SPST
• Number Of Poles: 1 Pole
• Product Name: Toggle Switch
• Standard: UR Listed
• Type: Heavy Duty
• MPN: SS201-1-BG
• Operation Method: On/Off
• Action: SPST
• Mounting: Threaded
