Selecta SS113-BG SEL Toggle Switch SPST ON-OFF, 20-AMP@125V, 10-AMP@250VAC

Product Description

The Selecta SS113-BG is a heavy-duty toggle switch designed for reliable performance. It operates at a voltage rating of 125 VAC and 250 VDC, with an amperage rating of 20/10 A. This product features a single pole, SPST contact configuration, ensuring simple on-off operations.

• Quick-connect terminals for easy installation
• Surface mounting for straightforward application

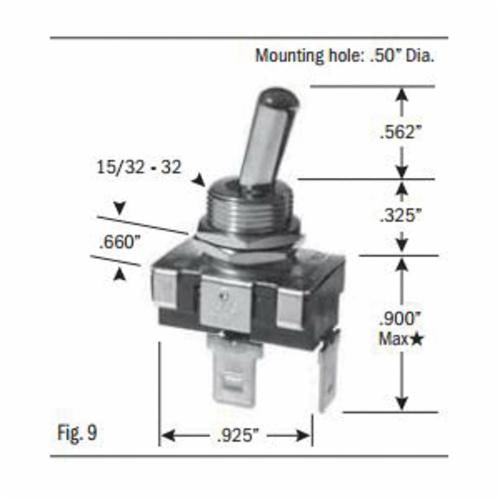

• Compact dimensions of 0.93 inches by 0.66 inches by 1.79 inches

Product Highlights

This toggle switch is suitable for a variety of applications requiring a robust switching solution.

Product Information

Standard Information

• Manufacturer: Selecta Products
• UPC: 66119117913

Technical Specifications

• Actuator: Bat Handle
• Amperage Rating: 20/10 A
• Contact Configuration: SPST
• Dimensions: 0.93 inches L x 0.66 inches W x 1.79 inches H
• Mounting: Surface
• Number of Poles: 1
• Power Rating: 3/4 hp
• Standards/Approvals: UR Listed
• Terminal Type: Quick-Connect
• Voltage Rating: 125 VAC, 250 VDC
