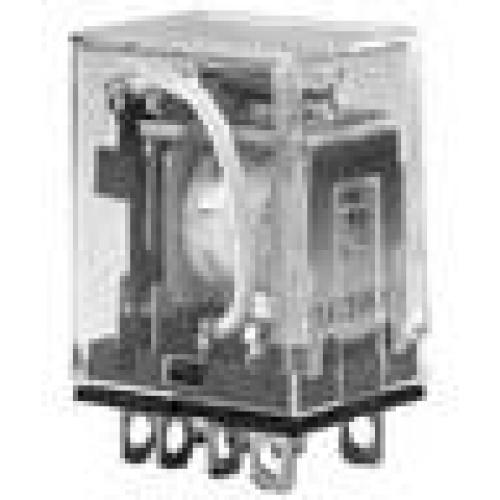

Selecta SR70S200A7 120Vac Relay

Product Description

The Selecta SR70S200A7 is a 120Vac relay. This general purpose relay features a DPDT contact configuration, a 120 VAC coil, and a 10 Amp contact rating at 110VAC/24VDC. Designed for socket mounting, it is suitable for various applications.

• DPDT contact configuration
• 120 VAC coil voltage
• 10 Amp contact rating

Product Highlights

The Selecta SR70S200A7 is a reliable general purpose relay with a DPDT configuration, 120 VAC coil, and 10 Amp contact rating, ideal for socket mounting.

Product Information

Standard Information

• Brand: SELECTA
• Manufacturer Part Number: SR70S200A7
• Country of Origin: United States

Technical Specifications

• Terminal Type: Plug-in
• Brand: Selecta Products, Inc.
• Poles & Throws: DPDT
• Contact Rating: 10 Amp
• Coil Volts: 120 AC
• Mounting Method: Socket
• Relay Type: General Purpose
• Available Socket: SR7008A
• Contact Material: AgCdO
• RoHS Indicator: Compliant
• MPN: SR70S200A7
• Category: General Purpose Relays
• Contact Resistance: 100 m © Max.
• Operate Time: 25 msec Max.
• Release Time: 25 msec Max.
• Dielectric Strength Between Coil and Contact: AC 1500 V, 50/60 Hz (1 minute)
• Dielectric Strength Between Contacts: AC 1000 V, 50/60 Hz (1 minute)
• Surge Resistance: 3000 V (between coil and contact 1 x 40 ¼ sec)
• Insulation Resistance: 100 M © Min. (500 VDC)
• Max. ON/OFF Switching Mechanically: 240 operations/min.
• Max. ON/OFF Switching Electrically: 30 operations/min.
• Operating Ambient Temperature: -25°C to +55°C (no water condensation and no water drop)
• Operating Humidity: 45% to 85% R.H.
• Coil Temperature Rise: 30° Max. (at rated coil voltage)
• Vibration Endurance: 10 to 55 Hz Double Amplitude 1.0 mm
• Vibration Error Operation: 10 to 55 Hz Double Amplitude 1.0 mm
• Shock Endurance: 100 G Min.
• Shock Error Operation: 10 G Min.
• Life Expectancy Mechanically: 10,000,000 operations/min (no load)
• Life Expectancy Electrically: 100,000 operations/min (at rated load)
• Mfr / Trade Name: SELECTA-PRODUCTS
