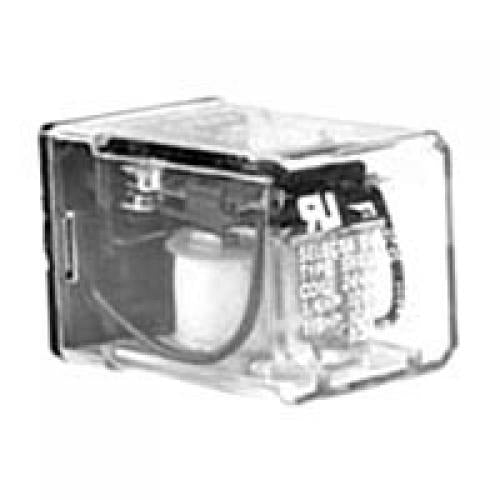

Selecta SR67S215A4 General Purpose Ice Cube Relay with Indicator Light 24VAC 10 Amp Double-Pole Double-Throw 8 Pin

Product Description

The Selecta SR67S215A4 is a general-purpose ice cube relay featuring an indicator light and a 24VAC coil. This double-pole double-throw (DPDT) relay is designed for socket mounting with an 8-pin octal terminal type. It is commonly used in various electrical control applications. The relay has a contact rating of 10 Amp.

• DPDT contact configuration
• Equipped with an indicator light
• Socket mounting with 8-Pin Octal Terminal

Product Highlights

General purpose ice cube relay with 24VAC coil, DPDT configuration, and 10 Amp contact rating, suitable for a variety of applications.

Product Information

Standard Information

• Brand: SELECTA
• Manufacturer Part Number: SR67S215A4

Technical Specifications

• Poles & Throws: DPDT
• Contact Rating: 10 Amp
• Coil Volts: 24 AC
• Pin Number: 8
• Mounting Method: Socket
• Indicator Light: Yes
• Relay Type: General Purpose
• Terminal Type: Octal
• Contact Material: AgCdO
• RoHS Indicator: Compliant
• Brand/Label: Selecta
• Coil: 24VAC
• 1/6HP: 10 Amp 120VAC
• 1/3HP: 10 Amp 240VAC, 10 Amp 28VDC
• Contact Voltage Rating: 230 VAC/28 VDC
