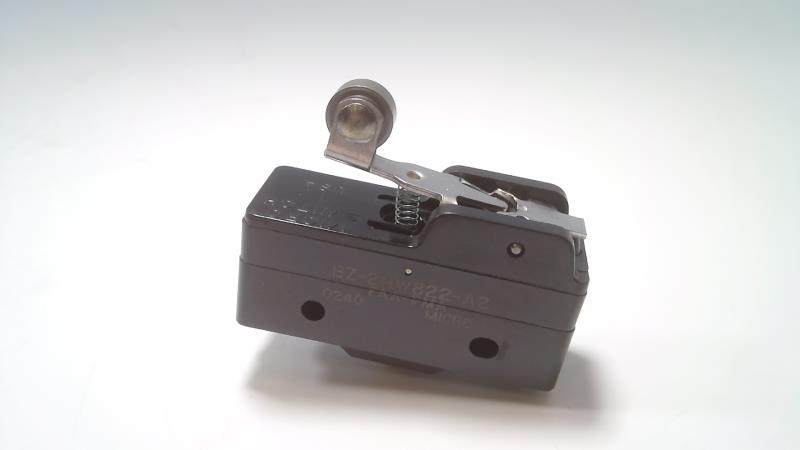

Selecta BZ-2RW822-A2-BG SPDT Switch 15A

Product Description

The Selecta BZ-2RW822-A2-BG SPDT Switch is a basic limit switch with a roller lever head. This switch is rated for 15A and features a screw terminal connection. It is suitable for various applications requiring precise limit detection and control. The switch is constructed with phenolic material and designed for panel mounting.

• Features a short roller lever
• SPDT configuration
• Rated for 15A

Product Highlights

The Selecta BZ-2RW822-A2-BG is a reliable SPDT switch with a short roller lever, ideal for precision limit detection in diverse applications.

Product Information

Standard Information

• Brand: SELECTA
• Manufacturer Part Number: BZ-2RW822-A2-BG
• Country of Origin: United States

Technical Specifications

• Brand: Selecta
• MPN: BZ-2RW822-A2-BG
• Type: Basic Limit Switch
• Head: Roller Lever
• Operator Configuration: Standard
• Head Action: Spring Return, Standard
• Poles/Contacts: SPDT
• Current Rating - nominal: 15A
• Force to Operate: 6 oz (1.67N) OF
• Differential-Travel - max: 0.02 in (0.51mm) DT
• Over-Travel: 0.094 in (2.39mm) OT
• Contact Rating: 15A 125-480V AC 0.5A 125V DC 0.25A 250V DC
• Connection: Screw Terminal
• Connection Configuration: Bottom Facing Screw w/Cup Washer, 6-32 x 0.218 in.
• Operating Temperature: -67°F (-55°C) to 185°F (85°C)
• Construction: Phenolic
