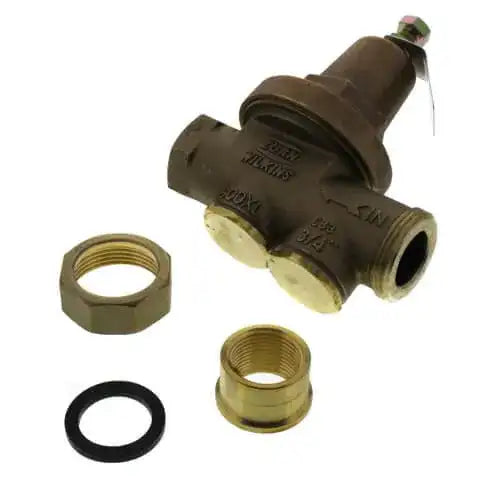

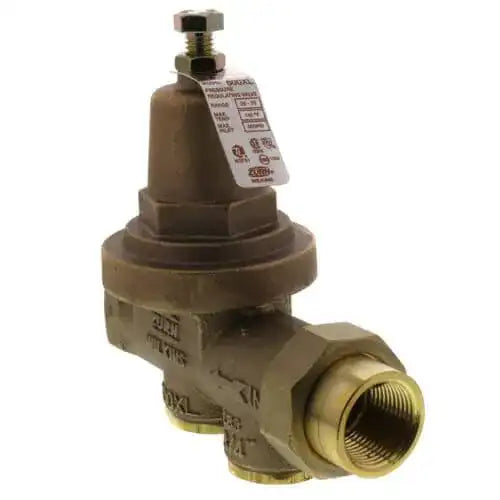

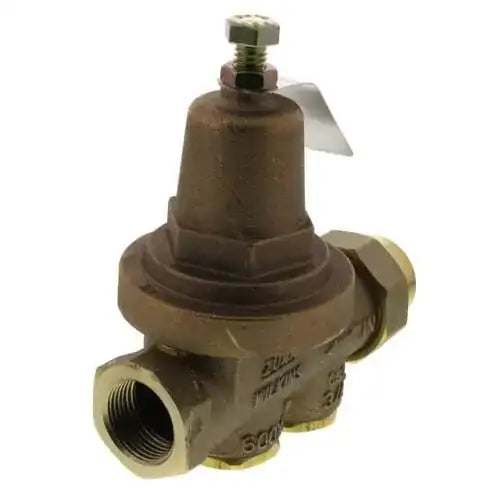

SELECT 34-600XL Pressure Reducing Valve 3/4 FNPT

Product Description

The SELECT 34-600XL Pressure Reducing Valve is a critical component for maintaining stable outlet pressure in systems with fluctuating or high inlet pressure. Built with a corrosion-resistant cast bronze body, this valve features a balanced piston design that ensures quick responses to pressure changes. It is suitable for both commercial and residential water services. The valve helps maintain downstream pressure within an adjustable range and has an integrated bypass function to prevent pressure buildup.

• Balanced Piston Design for responsive performance and steady outlet pressure control.
• Integral Bypass Check allows for safe excess pressure release, protecting downstream components.
• Serviceable Strainer with an accessible cap facilitates easy cleaning.

Product Highlights

Product Information

Standard Information

• Material: Brass
• Brand: SELECT

Technical Specifications

• Inlet Connection Size: 0.75 inches
• Outlet Connection Type: FNPT
• Maximum Operating Pressure: 300 pounds per square inch
• Number of Ports: 2
• Outlet Connection Size: 0.75 inches
• Temperature Range: Up to 140°F (60°C)
• Body Material: Cast Bronze
• Strainer: Stainless steel screen, accessible via cap
