Securitron XMS2 Passive Infrared Motion Sensor Request to Exit Device 12/24 VDC (7.125 x 1.75 x 1.87 in) SN-XMS2

Brand: SECURITRON
SKU: XMS2
Availability: In Stock

Ships same day if ordered by 12 pm
$202.50
$202.50
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

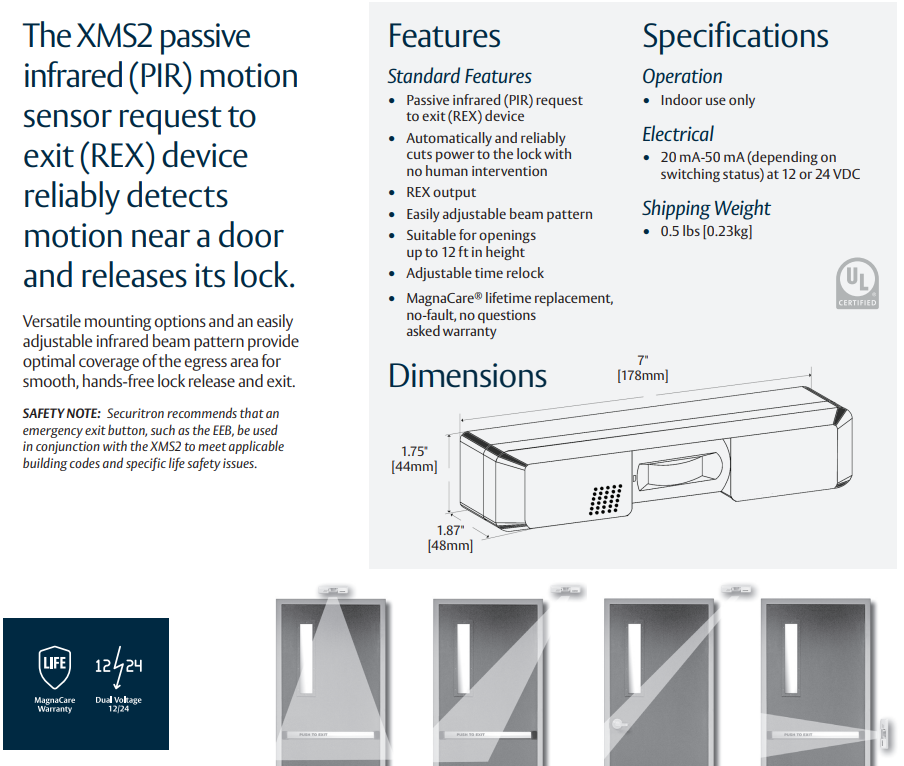

The Securitron XMS2 is a passive infrared (PIR) motion sensor request-to-exit (REX) device that detects motion near a door and releases a magnetic lock. The hardwired XMS2 operates on 12/24 VDC with a maximum current draw of 70 mA, offers an adjustable infrared beam pattern and time relock, and provides a REX output via an SPDT relay. It is intended for indoor surface mounting and fits openings up to 12 ft high.

  • Passive infrared (PIR) detection with adjustable beam pattern and adjustable relock time
  • 12/24 VDC operation with SPDT REX output and secondary relay for lock control
  • Indoor surface mount dimensions: 7.125 x 1.75 x 1.87 in; operating range 32°F to 120°F

Product Highlights

PIR request-to-exit sensor for magnetic locks; dual-voltage 12/24 VDC operation; adjustable beam and relock; suitable for indoor openings up to 12 ft; UL294 listed.

Product Information

Standard Information

  • Brand: SECURITRON
  • Manufacturer Part Number: XMS2
Technical Specifications
Manufacturer
Securitron
Model Number
XMS2
Detection System
Passive Infrared (PIR)
Function
Request to Exit (REX) device
Input Voltage
12/24 VDC
Max Current
70 mA (12 VDC and 24 VDC)
Switch
SPDT (Single Pole Double Throw)
Request to Exit Output
REX output (SPDT)
Lock Control Output
Secondary relay for lock control
Dual Relay Outputs
Yes
Mounting Type
Surface mount
Dimensions

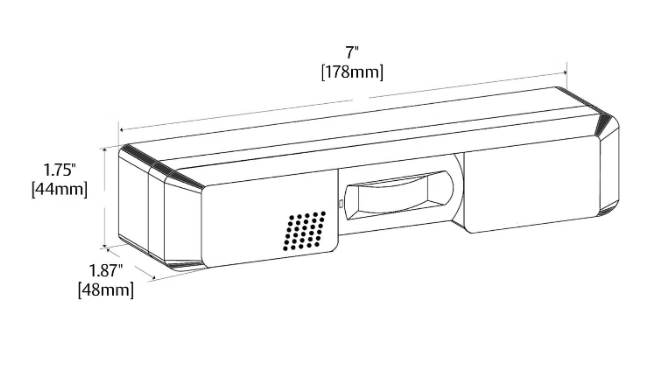

7.125 x 1.75 x 1.87 in (W x H x D)
Weight
0.5 lbs
Operating Temperature
32°F to 120°F
Usage
Indoor use only
Suitable Opening Height
Up to 12 ft
UL Listing
UL294 Listed
Compatible With
EEB3N, EEB3
Power Source
Hardwired
UPC
0784607054153
