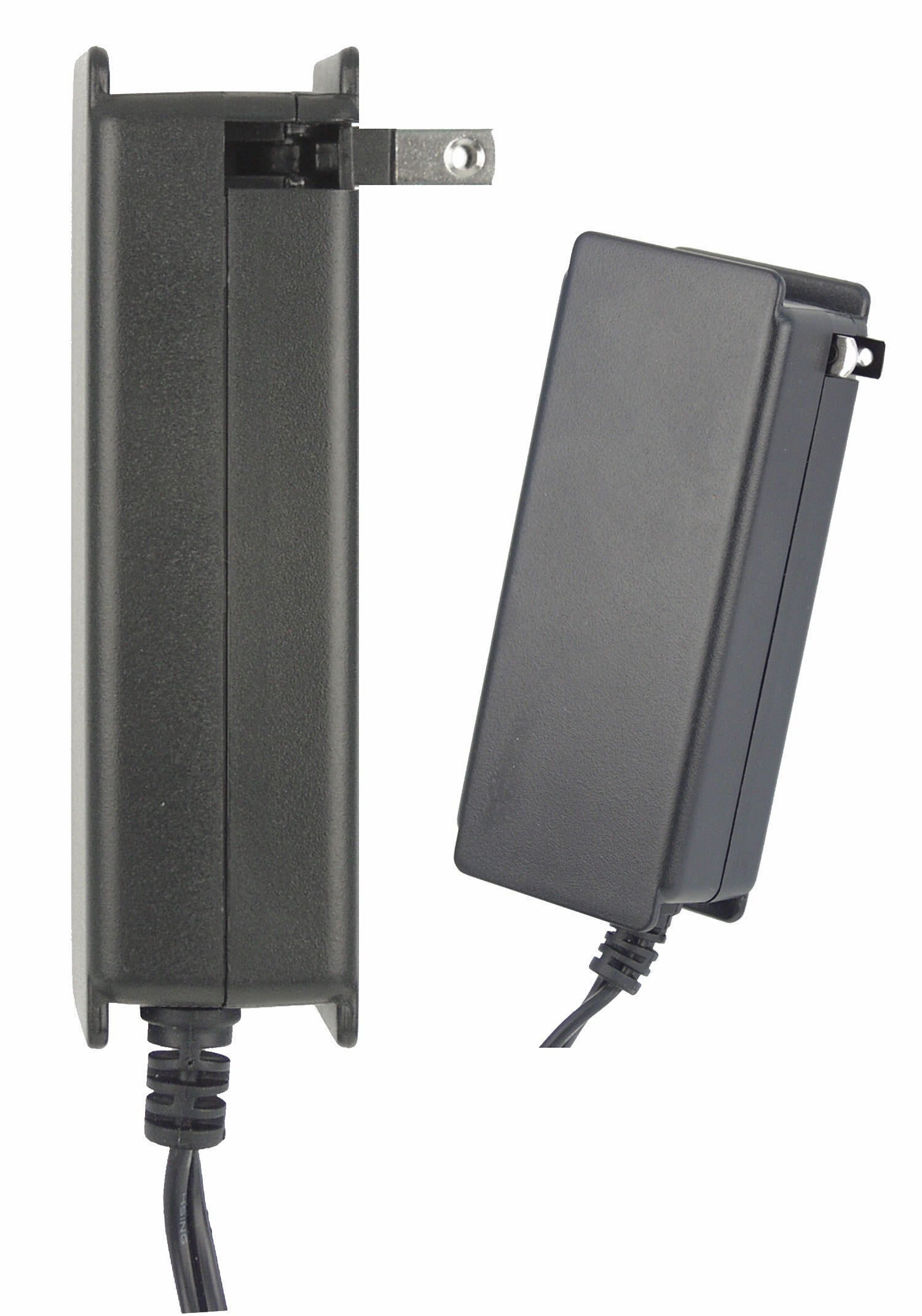

Securitron PSP24 24 Volt Dc Power Supply Plug-in

Product Description

The SECURITRON PSP24 is a plug-in, wall-mount DC power supply rated at 24 volts and 350 milliamps (mA). It is designed to provide clean, regulated DC power to low-voltage access control components including electromagnetic locks, door controllers, and related hardware. The unit measures 8.6 inches in length, 5.1 inches in width, and 1.5 inches in height, making it compact enough for installation in tight electrical or door-frame enclosures. Licensed electricians and access control technicians are the primary installers of this device.

The PSP24 is suited for light-duty access control applications in both residential and commercial settings. It is commonly installed at entry points where a door-mounted electromagnetic lock or similar low-current locking device requires a dedicated, stable 24-volt DC source. The plug-in form factor simplifies installation in locations with a nearby AC outlet, reducing the need for hardwired panel power supplies in smaller single-door deployments.

Key Features

• 24-volt DC regulated output for compatibility with standard low-voltage access control hardware
• 350 mA output current supports single-door electromagnetic lock installations
• Plug-in design eliminates the need for a dedicated hardwired power panel in small deployments
• Compact footprint at 8.6 x 5.1 x 1.5 inches fits in confined installation spaces
• Single-unit order quantity for straightforward procurement on individual door applications

Compatibility

Designed as an OEM-style plug-in power supply for low-voltage access control systems requiring a regulated 24-volt DC source.

Installation Notes

Installation should be performed by a licensed electrician or qualified access control technician in accordance with applicable NEC requirements. De-energize and lock out all connected locking hardware before making or breaking load connections. Verify the output voltage and polarity match the requirements of the connected device before applying power. Do not exceed the rated 350 mA output current to avoid overloading the supply.
