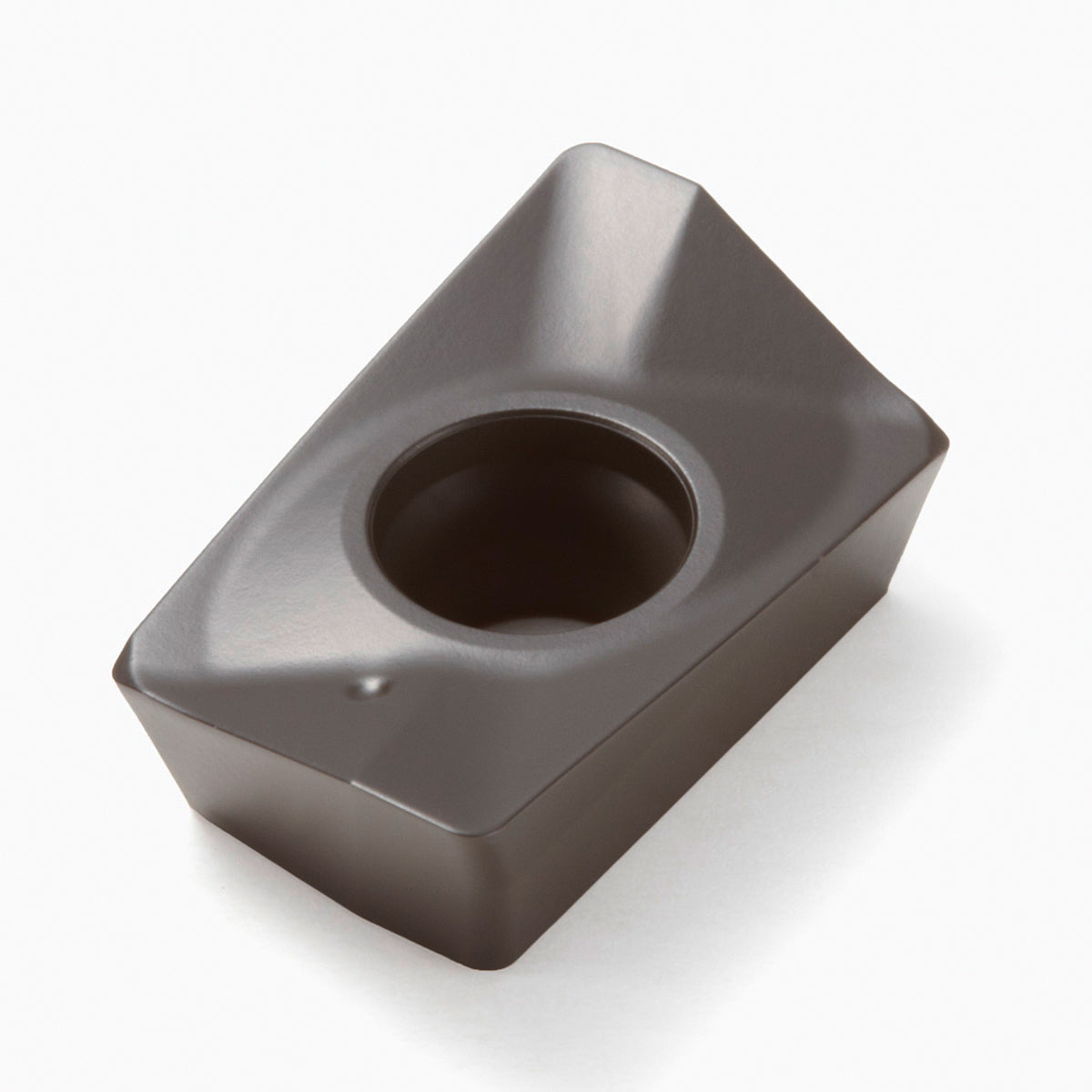

Seco SECOT-78317 Indexable Milling Insert Power Size 180608 Replacement MPN

Product Description

Seco SECOT-78317 is an indexable milling insert designed for high-performance machining. The XOMX insert is suitable for various applications, particularly in cast iron, plastics, and non-ferrous metals. This insert features a rectangular shape with a size of one hundred eighty-six hundred eight (180608) and is made from carbide material.

• Right-hand design
• PVD-TiAlSiN coating for enhanced durability
• Inscribed circle diameter of zero point four hundred forty-one (0.441) inches

Product Highlights

Ideal for high-speed applications that require precision and efficiency.

Product Information

Standard Information

• Brand: Seco
• MPN: SECOT-78317

Technical Specifications

• ANSI Code: XOMX180608TR-M14 MK2050
• Chipbreaker: M14
• Corner Radius: 0.8 mm
• Finish: PVD-TiAlSiN Coated
• Hand of Insert: Right
• ISO Code: XOMX180608TR-M14 MK2050
• Inscribed Circle: 0.441 in
• Thickness: 6.4 mm
• Width: 0.441 in
• Insert Style: XOMX
• Insert Size: 180608
• Material: Carbide
• Material Application: Cast Iron, Plastics and Non-Ferrous Metals
• Shape: Rectangle
