Seco SECOT-68127 Turning Insert ANSI Code: CCMT32.52-F2 TP200

Product Description

Seco Turning Insert, MPN SECOT-68127, is designed for precision metalworking tasks. It features an ANSI Code of CCMT32.52-F2 TP200 and is suitable for cutting steel. This turning insert is made of carbide with a CVD-TiCN+Al2O3+TiN coating which improves durability. The diamond shape provides effective cutting performance.

• Carbide construction for enhanced wear resistance
• Suitable for neutral cutting applications
• ANSI and ISO codes for easy identification

Product Highlights

This turning insert is ideal for finishing applications, offering high precision and reliable performance.

Product Information

Standard Information

• Brand: Seco
• Material Grade: P

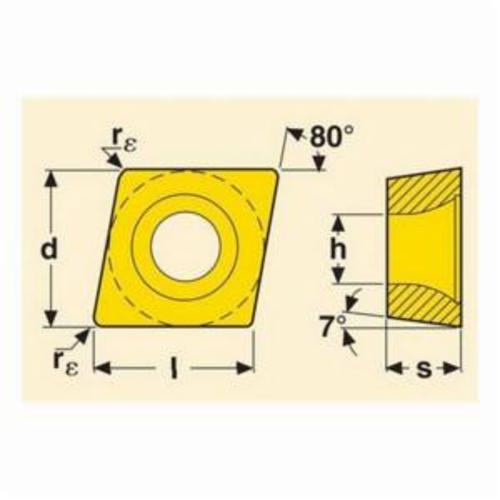

Technical Specifications

• ANSI Code: CCMT32.52-F2 TP200
• Chipbreaker: F2
• Corner Radius: 0.8 mm
• Finish: CVD-TiCN+Al2O3+TiN Coated
• Hole Diameter: 4.5 mm
• ISO Code: CCMT09T308-F2 TP200
• Included Angle: 80 deg
• Inscribed Circle: 9.5 mm
• Maximum Depth of Cut: 3.5 mm
• Relief Angle: 7 deg
• Thickness: 3.97 mm
• Insert Style: CCMT
• Insert Size: 09T308
• Shape: Diamond
• Seat Size: 09
• Rake: Positive
• Cutting Direction: Neutral
• For Use On: Steel
• Material: Carbide
