Seco SECOT-52706 Seco 02690093 MDT Double End Turning Insert

Product Description

The Seco 02690093 MDT Double End Turning Insert with MPN SECOT-52706 is designed for precision turning in various manufacturing applications. This insert features a rectangle shape and is suitable for cutting super alloys and titanium. It is ideal for fine grooving applications.

• Insert Type: Double End
• Material: Carbide
• Norm: ANSI Code LCGF130302-0300-GS 883

Product Highlights

This turning insert utilizes neutral cutting direction to enhance performance and reduce wear.

Product Information

Standard Information

• Brand: Seco
• Manufacturer Part Number: 02690093

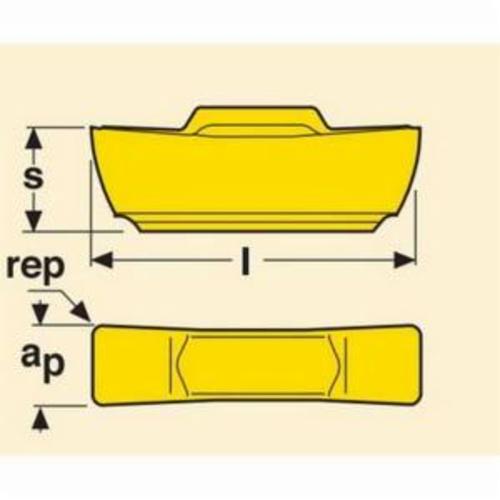

Technical Specifications

• ANSI Code: LCGF130302-0300-GS 883
• Chipbreaker: GS
• Corner Radius: 0.2 mm
• Finish: Uncoated
• ISO Code: LCGF130302-0300-GS 883
• Length: 12.3 mm
• Maximum Depth of Cut: 12.3 mm
• Relief Angle: 7 degrees
• Series: MDT
• Thickness: 3.9 mm
• Insert Style: LCGF
• Material Grade: S
• Insert Size: 1303
• Shape: Rectangle
• Seat Size: 13
• Cutting Direction: Neutral
• For Use On: Super Alloys and Titanium
• Material: Carbide
