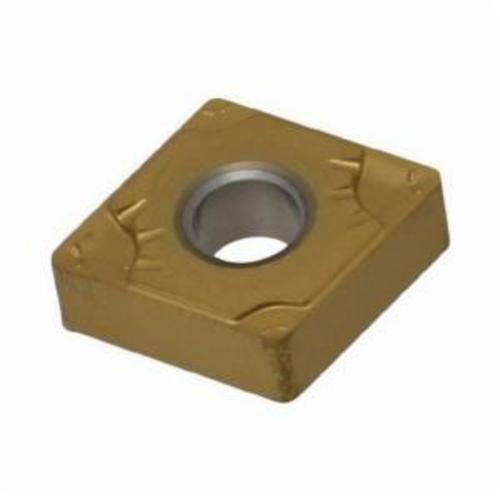

Seco SECOT-39023 Turning Insert, ANSI Code: CNMG432-MF5 TS2000

Product Description

Seco Turning Insert SECOT-39023 is designed for accuracy and durability. This CNMG insert features a diamond shape and is suitable for cutting stainless steel and titanium/super alloys. It is made from carbide and has a PVD-TiAlN+TiN coating for enhanced performance.

• Suitable for stainless steel and titanium/super alloys
• Negative rake with a neutral cutting direction
• Compatible with various turning applications

Product Highlights

Utilized for medium to finishing operations, this insert offers a balanced mix of strength and precision.

Product Information

Standard Information

• Brand: Seco
• Manufacturer Part Number: 02615941

Technical Specifications

• ANSI Code: CNMG432-MF5 TS2000
• ISO Code: CNMG120408-MF5 TS2000
• Insert Style: CNMG
• Material Grade: M, S

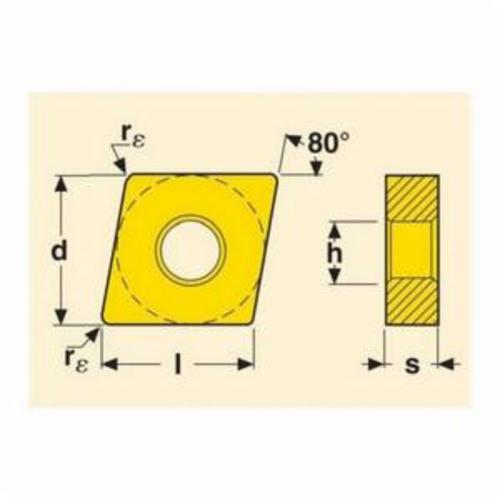

• Insert Size: 120408
• Shape: Diamond
• Maximum Depth of Cut: 5.25 mm
• Inscribed Circle: 12.7 mm
• Thickness: 4.76 mm
• Corner Radius: 0.8 mm
• Hole Diameter: 5.15 mm
• Included Angle: 80 deg
• Relief Angle: 0 deg

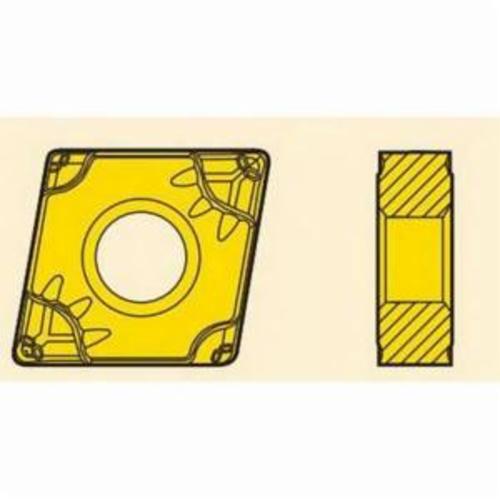

• Chipbreaker: MF5
• Finish: PVD-TiAlN+TiN Coated
• Rake: Negative
• Cutting Direction: Neutral
• For Use On: Stainless Steel and Titanium/Super Alloys
