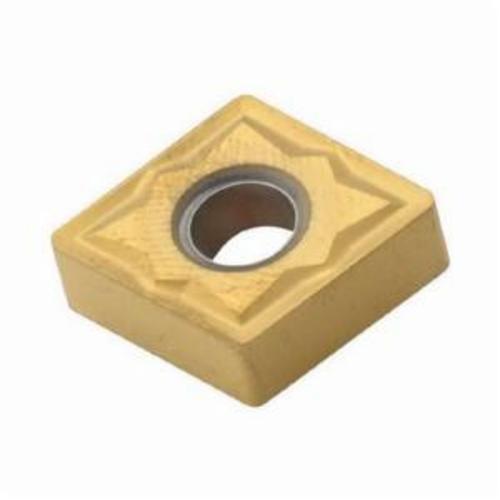

Seco SECOT-38968 Turning Insert, ANSI Code: CNMG432-MR3 TS2000

Product Description

The Seco SECOT-38968 is a high-performance turning insert designed for machining operations on stainless steel and titanium alloys. This insert features an ANSI code of CNMG432-MR3 TS2000. It is suitable for medium and roughing applications.

• Negative rake for better chip control
• PVD-TiAlN+TiN coating for enhanced wear resistance
• Compatibility with various cutting tools and turning machines

Product Highlights

This turning insert excels in delivering efficient cutting while maintaining tool integrity.

Product Information

Standard Information

• Brand: Seco
• Manufacturer's Grade: TS2000

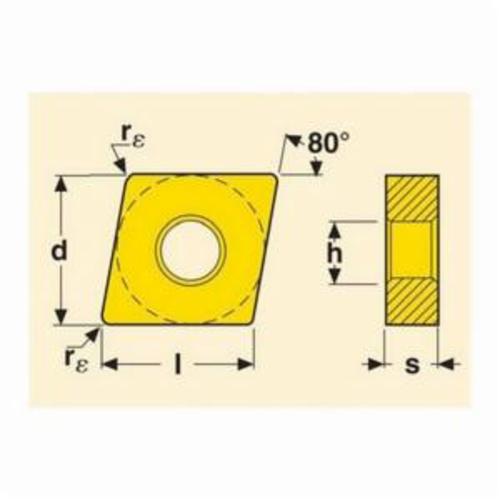

Technical Specifications

• ANSI Code: CNMG432-MR3 TS2000
• ISO Code: CNMG120408-MR3 TS2000
• Insert Style: CNMG
• Insert Size: 120408
• Thickness: 4.76 mm
• Corner Radius: 0.8 mm
• Hole Diameter: 5.15 mm
• Maximum Depth of Cut: 5.25 mm
• Inscribed Circle: 12.7 mm
• Included Angle: 80 degrees
• Relief Angle: 0 degrees

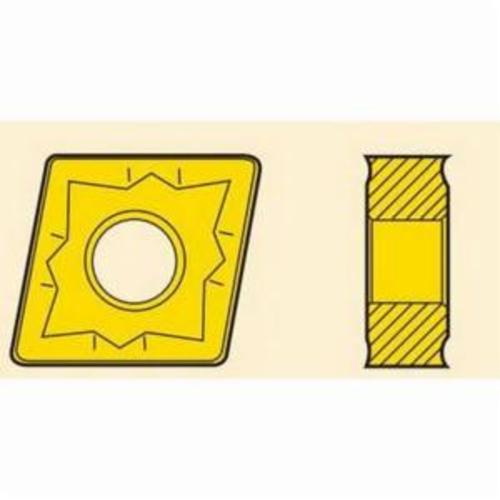

• Chipbreaker: MR3
• Rake: Negative
• Cutting Direction: Neutral
• Material Grade: M, S
• For Use On: Stainless Steel and Titanium/Super Alloys
• Material: Carbide
